75174

Name: 75174 - Communica [Part No: 75174]
Brand: Communica
SKU: 75174
Price: 5.50 ZAR
Availability: InStock

SKU: 75174

BRAND: Communica

R 6.33_{(inc VAT)}
R 5.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Buffers & Line Drivers

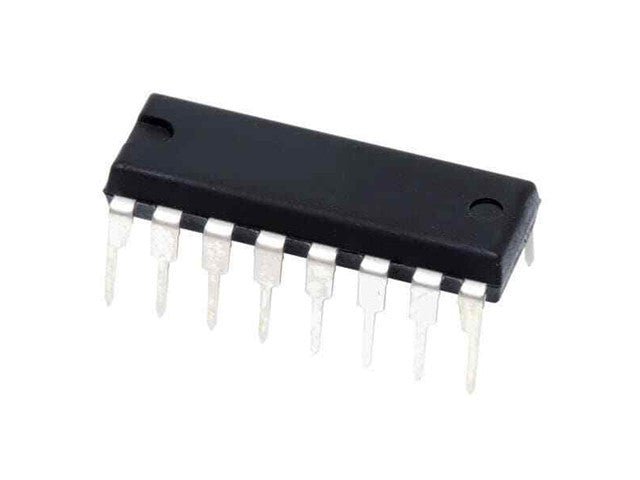

Quadruple Differential Line Driver 16PD

Specifications

Parameter	Value
Logic Family	TTL
Supply Voltage (Vcc)	4.75 – 5.25 V
Input Voltage (High)	2.0 V minimum
Input Voltage (Low)	0.8 V maximum
Differential Output Voltage	±1.5 V typical
Output Current	±20 mA per channel typical
Propagation Delay	~20 ns typical
Output Impedance	~50 Ω

Feature

Four independent differential driver channels.
TTL-to-differential conversion.
High noise immunity for long-distance signal transmission.
Suitable for RS-422 / RS-485 communication networks.
16-pin DIP package.

Applications

Industrial data communication networks
Differential bus driving for RS-422 / RS-485
Long-distance TTL signal transmission
Multi-channel differential signal interfacing

Additional Information

Device

Driver

Enhance your data communication with the 75174 Quadruple Differential Line Driver. Designed for reliable RS-422/RS-485 networks, this high-performance driver offers four independent channels, ensuring superior noise immunity and long-distance signal transmission. Experience fast propagation delays and robust output current, making it perfect for industrial applications. Upgrade your signal integrity today!
