75176

Name: 75176 - Communica [Part No: 75176]
Brand: Communica
SKU: 75176
Price: 19.50 ZAR
Availability: InStock

SKU: 75176

BRAND: Communica

R 22.43_{(inc VAT)}
R 19.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Interface ICs

Category: Line Drivers / Transceivers IC's, Transceiver IC's

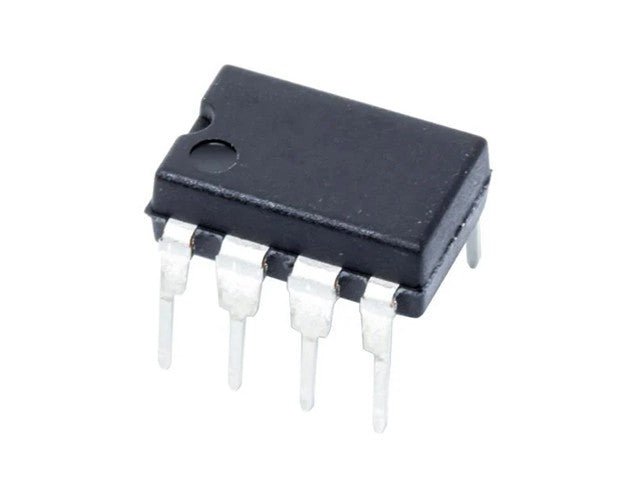

Differential Bus Transceiver 5V 8P DIP

Specifications

Parameter : Value
Logic Family : TTL-compatible
Supply Voltage (Vcc) : 5 V ±10%
Input Voltage (High) : 2.0 V minimum
Input Voltage (Low) : 0.8 V maximum
Differential Output Voltage : ±1.5 V typical
Driver Output Current : ±20 mA typical
Receiver Input Threshold : ±200 mV typical
Propagation Delay : ~30 ns typical
Bus Load : Up to 32 transceivers per bus

Feature

Bidirectional differential transceiver.
TTL-compatible input and output.
Driver and receiver enable pins for flexible bus control.
Operates on a single 5 V supply.
High noise immunity over long transmission lines.
8-pin DIP package.

Applications

RS-422 / RS-485 differential bus communication.
Industrial automation networks.
Multi-node communication systems.
Long-distance digital data transmission.

Additional Information

Device

Transceiver

Upgrade your communication systems with the 75176 Differential Bus Transceiver. Designed for RS-422/RS-485 applications, this 5V TTL-compatible transceiver ensures reliable, bidirectional data transmission with high noise immunity. Its compact 8-pin DIP package supports up to 32 devices, making it ideal for industrial automation and long-distance communication. Enhance your network's performance today!
