75452

Name: 75452 - Communica [Part No: 75452]
Brand: Communica
SKU: 75452
Price: 16.25 ZAR
Availability: InStock

SKU: 75452

BRAND: Communica

R 18.69_{(inc VAT)}
R 16.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Driver Peripheral IC's

Driver Peripheral Dual 8PD

Specifications

Logic family: TTL compatible
Supply voltage (Vcc): 4.75 – 5.25 V
Input HIGH (VIH): ≥ 2.0 V
Input LOW (VIL): ≤ 0.8 V
Output current: up to ~300 mA peak (load dependent, per channel)
Output type: high-current driver (open-collector or saturated switch depending on variant)
Propagation delay: ~20 ns typical
Power dissipation: low, suitable for logic interfacing

Feature

Two independent driver channels
TTL-compatible inputs
High-current outputs for peripheral loads
Designed for driving relays, lamps, solenoids, or LEDs
Internal protection suited for inductive loads (variant dependent)

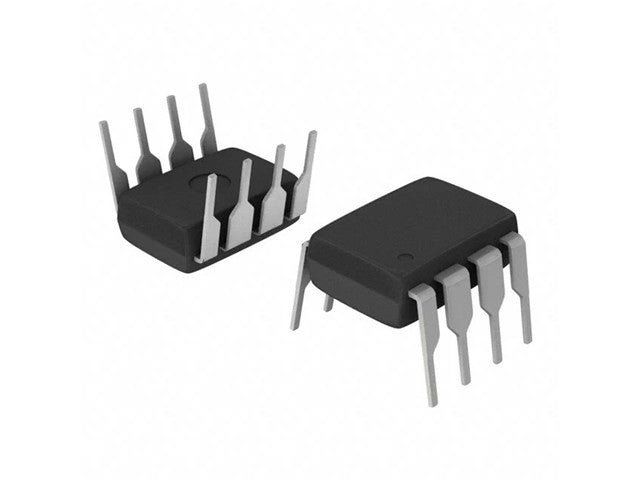

Compact 8-pin DIP package

Typical Applications

Relay and solenoid drivers
Lamp or LED driving from TTL logic
Microprocessor or digital system output buffering
Industrial control and interface circuits
Peripheral device switching

Additional Information

Device

IC

The 75452 Dual 8PD Driver Peripheral is your go-to solution for powering relays, lamps, and LEDs with ease. Featuring two independent channels and TTL-compatible inputs, this compact 8-pin DIP package ensures high-current outputs while maintaining low power dissipation. Perfect for industrial control and microprocessor applications, it delivers reliable performance with internal protection for inductive loads. Elevate your projects with the efficiency and versatility of the 75452 Driver today!
