75454

Name: 75454 - Communica [Part No: 75454]
Brand: Communica
SKU: 75454
Price: 4.95 ZAR
Availability: InStock

SKU: 75454

BRAND: Communica

R 5.69_{(inc VAT)}
R 4.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Semiconductors

Type: Logic ICs

Category: Driver Peripheral IC's

Driver Peripheral Dual 8PD

Specifications

Logic family: TTL compatible
Supply voltage (Vcc): 4.75 – 5.25 V
Input HIGH (VIH): ≥ 2.0 V
Input LOW (VIL): ≤ 0.8 V
Output type: high-current peripheral driver (typically open-collector/saturated switch)
Output current capability: up to ~300 mA peak (load dependent)
Propagation delay: ~20 ns typical

Feature

Two independent driver channels
TTL-compatible inputs
High-current outputs for external loads
Designed for inductive and resistive loads

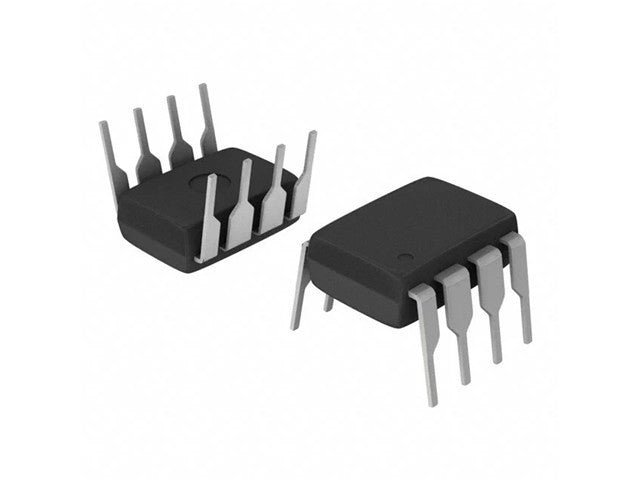

Compact 8-pin DIP package
Suitable for direct interface with relays, lamps, and indicators

Applications

Relay and solenoid drivers
Indicator lamp or LED driving
Digital system output buffering
Industrial control interfaces
Peripheral device switching from TTL logic

Additional Information

Device

IC

The 75454 Dual 8PD Driver Peripheral is your go-to solution for efficient relay and solenoid control. With high-current outputs and TTL-compatible inputs, it easily interfaces with various devices, making it perfect for industrial applications. Experience reliable performance and rapid response with this compact 8-pin DIP package, designed for seamless integration into your digital systems.
