7550500000

Name: 7550500000 - Communica [Part No: 7550500000]
Brand: Hummel
SKU: 7550500000
Price: 602.28 ZAR
Availability: InStock

SKU: 7550500000

BRAND: Hummel

R 692.62_{(inc VAT)}
R 602.28_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

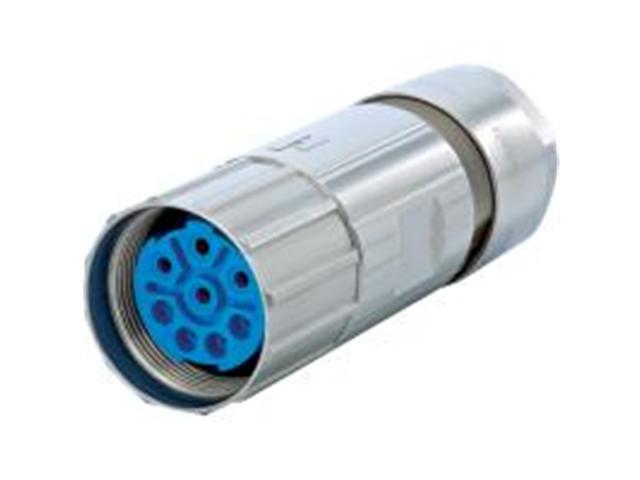

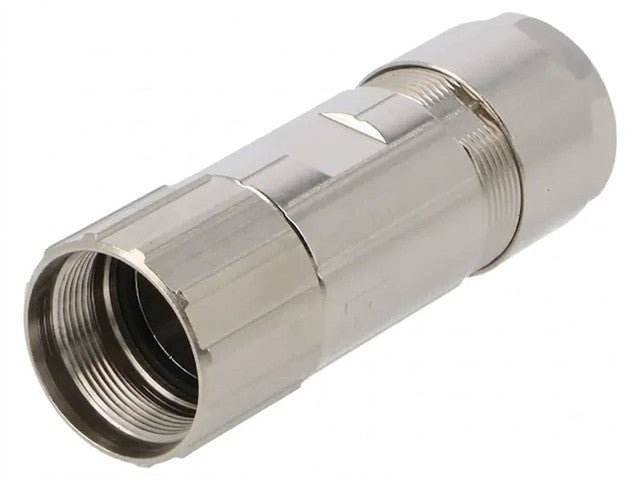

Circular Connector M23 Power Cable Housing Female Thread Cable OD 7~12mm

M23 Power Cable Housing

Feature(s)

Suitable for all power inserts - 6, 8 & 9 Pole

Specifications

Housing type	Cable
Material housing	Zinc Die Cast, brass
Material housing surface	Nickel
Version	Screw
Internal thread plug-in side	M23 x 1

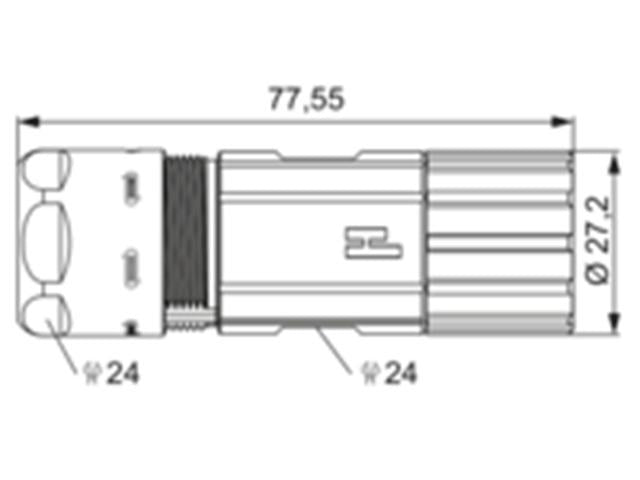

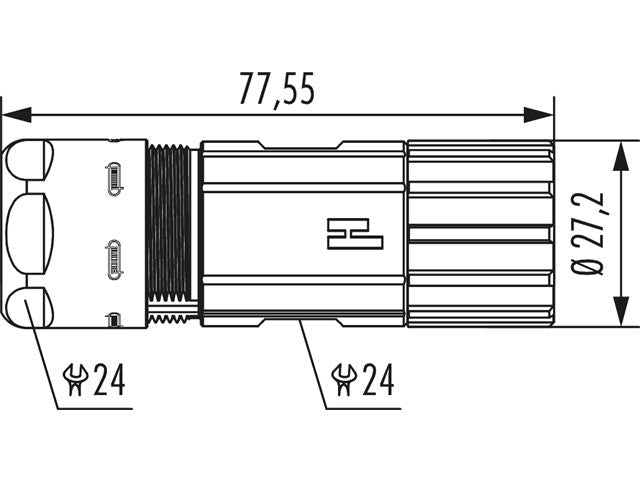

Knurled nut-Ø plug-in side	27.2 mm
Locking type	Screw
Shield	shielded

Seal type	O-Ring
Material seals/o-rings	NBR
Wrench size (SW1/SW2)	24/24 mm
Cable diameter	7 – 12 mm
Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K
suitable contact inserts	7084909101, 7084909102, 7084910101, 7084910102, 7084942101, 7084942102, 7084943121, 7084943122, 7084944101, 7084944102, 7084946101, 7084946102, 7084951121, 7084951122, 7084953101, 7084953102

Downloads

Datasheet - 7550500000

Additional Information

Device

Housing

Discover the reliable 7550500000 M23 Circular Power Cable Connector, designed for rugged environments with a temperature range of -40°C to +125°C. Its robust zinc die-cast housing and IP67/IP69K protection ensure durability and superior performance. Perfect for secure power connections, this connector enhances your device's efficiency while safeguarding against dust and moisture. Upgrade your connectivity with this essential component today!
