7560600000

Name: 7560600000 - Communica [Part No: 7560600000]
Brand: Hummel
SKU: 7560600000
Price: 743.40 ZAR
Availability: InStock

SKU: 7560600000

BRAND: Hummel

R 854.91_{(inc VAT)}
R 743.40_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

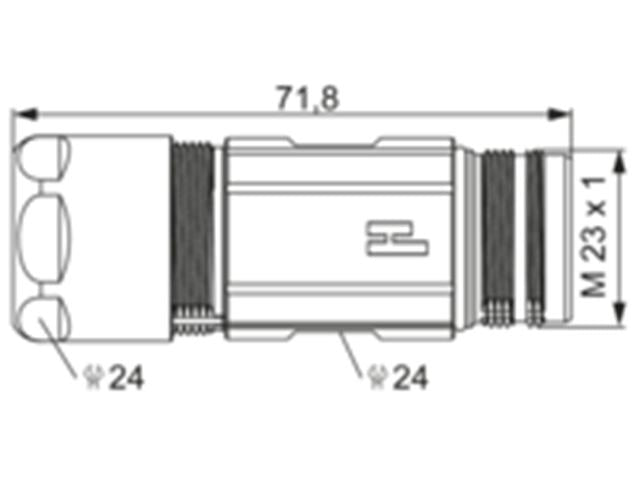

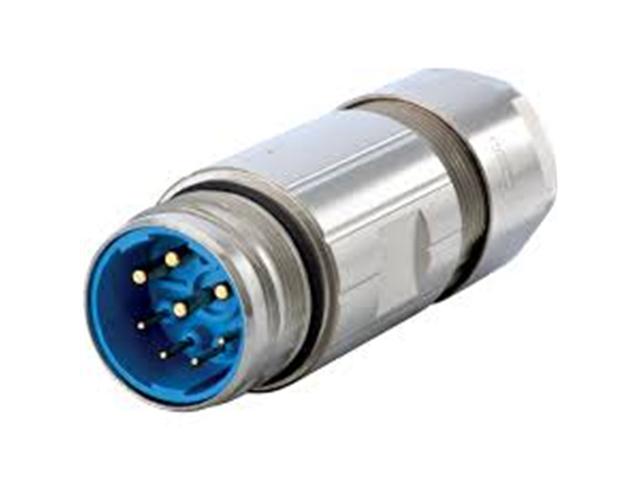

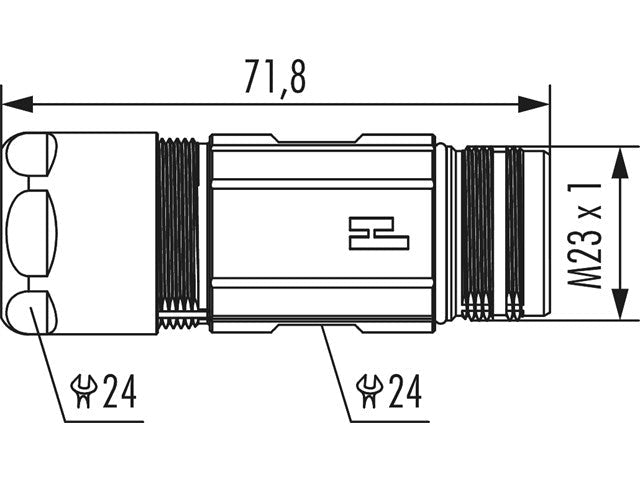

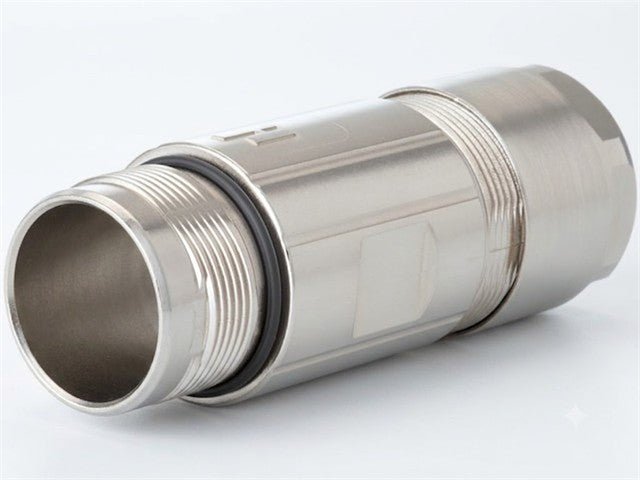

Circular Connector M23 Power Cable Housing Male Thread Cable OD 11~17mm

M23 Power Cable Housing

Feature(s)

Suitable for all power inserts - 6, 8 & 9 Pole

Specifications

Housing type	Coupler
Material housing	Zinc Die Cast, brass
Material housing surface	Nickel
Insert	Pin
Version	Screw, TWILOCK
External thread plug-in side	M23 x 1
Locking type
Shield	shielded

Seal type	O-Ring
Material seals/o-rings	NBR
Wrench size (SW1/SW2)	24/24 mm
Cable diameter	11 – 17 mm
Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K
suitable contact inserts	7084909101, 7084909102, 7084910101, 7084910102, 7084942101, 7084942102, 7084943121, 7084943122, 7084944101, 7084944102, 7084946101, 7084946102, 7084951121, 7084951122, 7084953101, 7084953102

Downloads

Datasheet - 7560600000

Additional Information

Device	Housing
Size	M23
Cable	Cable OD 11~17mm

Discover the durable M23 Circular Connector Power Cable, designed for reliable connections in demanding environments. With a temperature range of -40°C to +125°C and IP67/IP69K protection, it ensures optimal performance and longevity. Perfect for industrial applications, this robust connector features a secure screw locking mechanism and is compatible with various contact inserts. Upgrade your equipment with this high-quality, shielded power cable today!
