7639000000

Name: 7639000000 - Communica [Part No: 7639000000]
Brand: Hummel
SKU: 7639000000
Price: 644.75 ZAR
Availability: InStock

SKU: 7639000000

BRAND: Hummel

R 741.46_{(inc VAT)}
R 644.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

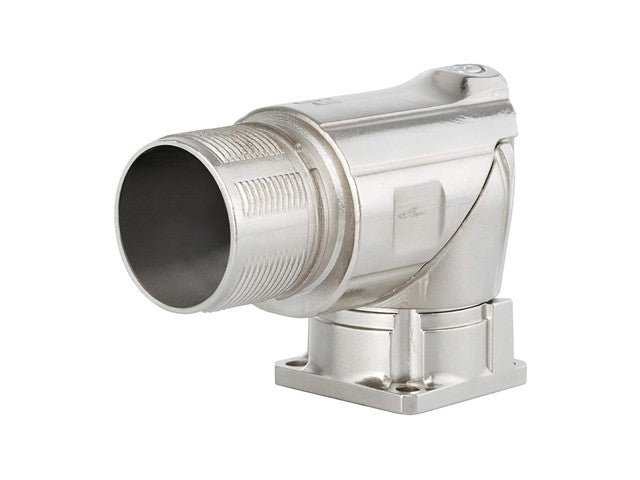

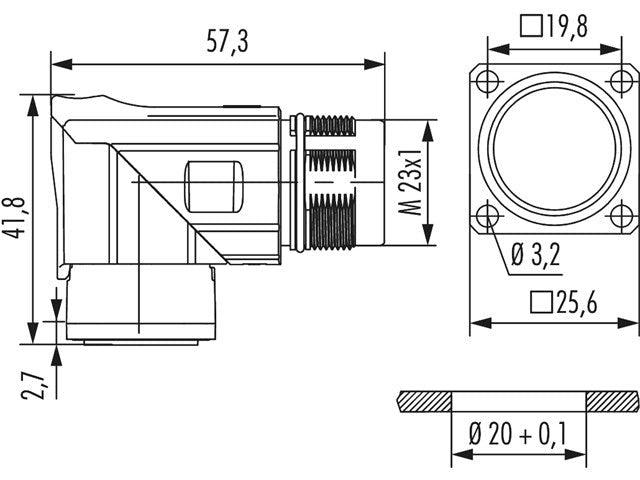

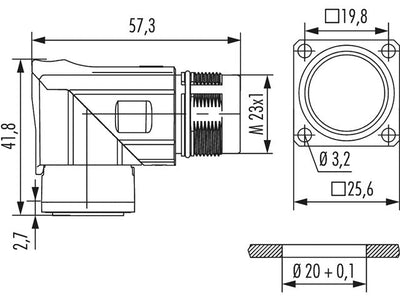

Circular Connector M23 Power Right Angle Housing without Insert Male Thread 300°. Rotatable 25mm Square. Flange 4x2,7mm Mounting Holes

M23 Power Right Angled Insert Housing

Feature(s)

Mates with 7550500000/7550600000/7560600000 Power Plug Housings

Specifications

Housing type	Cable
Material housing	Zinc Die Cast, brass
Material housing surface	Nickel
Insert	RJ45
Version	Screw
Internal thread plug-in side	M23 x 1
Knurled nut-Ø plug-in side	27.2 mm
Locking type	Screw
Shield	unshielded

Seal type	O-Ring
Material seals/o-rings	FKM (FPM), NBR
Wrench size (SW1/SW2)	24/24 mm
Cable diameter	3 – 7 mm
Length (L)	69.5 mm
Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K
suitable contact inserts	7MRJ450007, A7RJ-081M41, A7RJ-821M51

Downloads

Datasheet - 7639000000

Additional Information

Device

Insert Housing

Discover the 7639000000 Circular Connector, designed for reliable power transmission with a robust right-angle housing. This M23 connector features a durable zinc die-cast construction and offers easy installation with its screw-lock mechanism. With an IP67/IP69K protection class, it ensures optimal performance in harsh environments, making it perfect for industrial applications. Upgrade your connectivity solutions today!
