77-3634-0000-20004-0200 - Circular Connectors -

77-3634-0000-20004-0200

Name: 77-3634-0000-20004-0200 - Communica [Part No: 77-3634-0000-20004-0200]
Brand: Binder
SKU: 77-3634-0000-20004-0200
Price: 365 ZAR
Availability: OutOfStock

SKU: 77-3634-0000-20004-0200

BRAND: Binder

Sold Out
R 419.75_{(inc VAT)}
R 365.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

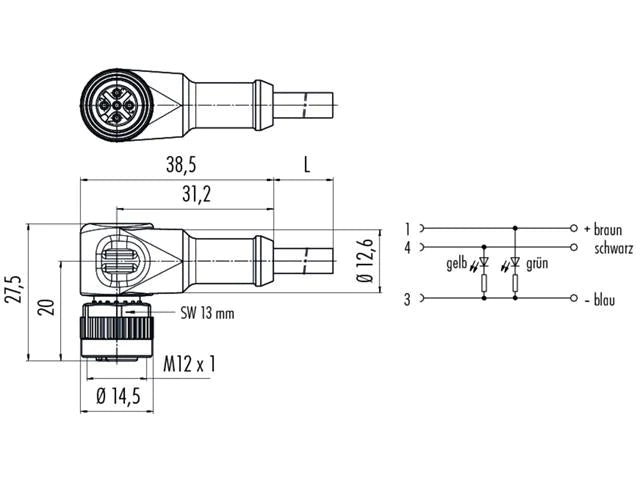

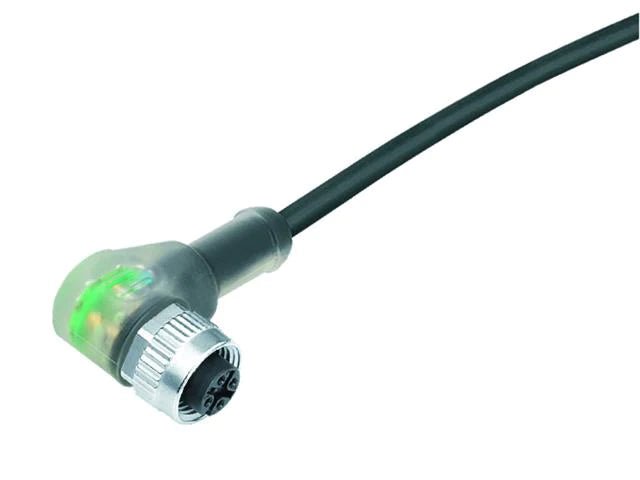

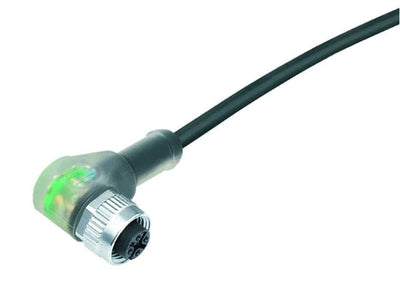

Cordset M12A Female Right Angled Connector 4 Pole Single End with LED PNP NC/NO Antivalent - 2M PVC Cable 4A /36VDC IP68

Cordset M12A Female Right Angled Connector

Feature(s)

Connector locking system : screw
Termination : moulded on cable
Wire gauge (mm) : 0.34 mm²
Wire gauge (AWG) : 22
Cable length : 2 m
EMC compliance : not shielded
Degree of protection : IP69K
Mechanical operation : > 100 Mating cycles
Temperature range from/to : – 25 °C / 90 °C
Rated current (40 °C) : 4 A
Rated voltage : 10 - 30 V
Rated impulse voltage : 500 V
Pollution degree : 3
Overvoltage category : II
Insulating material group : II
Insulation resistance : ≥ 10¹⁰ Ω
Contact material : CuSn (bronze)
Contact plating : Au (gold)
Contact body material : PUR
Housing material : PUR

Cable data

Sheath material : PVC
Single-lead insulation : PVC
Single-lead structure : 42 x 0,1 mm
Cable diameter : 4.5 mm
Conductor resistance : 57 Ω/Km
Temperature range cable in move from/to : - 5 °C / 105 °C
Temperature range cable fixed from/to : -40 °C / 105 °C
Bending radius, fixed cable : ≥ 5 x Ø
Bending radius, moving cable : ≥ 10 x Ø
Bending cycles : 2 Mio.
Permitted acceleration : 5 m/s²
Travel distance, horizontal : 5 m
Travel distance, vertical : 2 m
Travel speed : ≤ 200 m/min (5 m horizontal distance)
Approval 1 : UL listed
UL style 1 : AWM2517
Connector design : female angled connector
Packaging Unit : 1
Customs tariff number : 85444290
Weight (g) : 163
Cable color : grey

Downloads

Datasheet - 79-3436-13-04

Additional Information

Device	Connector
Type	Cordset \| M12A \| Female \| Right \| Angled
