7ME3723-7JG21-1UA3-Z

Name: 7ME3723-7JG21-1UA3-Z - Communica [Part No: 7ME3723-7JG21-1UA3-Z]
Brand: Siemens
SKU: 7ME3723-7JG21-1UA3-Z
Price: 143485 ZAR
Availability: OutOfStock

SKU: 7ME3723-7JG21-1UA3-Z

BRAND: Siemens

Sold Out
R 165,007.75_{(inc VAT)}
R 143,485.00_{(ex VAT)}

Collections: Electromechanical, Weight 10+

Type: Industrial Automation

Category: SITRANS FS230 Clamp-On

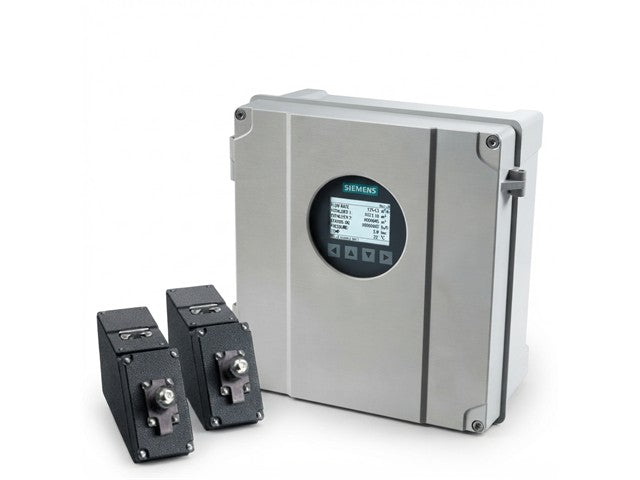

(A64+B11+E02+F04+K24+S30) SITRANS FS230 Clamp-On Highly accurate flow meter in the industrial sector for water supply, for crude oil or petroleum products or for gas. 7ME3723-7JG21-1UA3-Z A64+B11+E02+F04+K24+S30

SITRANS FS230 Clamp-On

Specifications

Flow Measurement Principle: Ultrasonic Transit-Time
Installation Type: Clamp-On (Non-invasive)
Application: High-accuracy flow measurement for liquids
Suitable Media:
- Water
- Wastewater
- Crude oil
- Petroleum products
- Other industrial liquids
Transmitter: FST030
Sensor Type: FSS200 Clamp-On Sensors
Pipe Outside Diameter: 305–508 mm (12–20 in)
Pipe Wall Thickness: 4.1–5.8 mm
Sensor Mounting: Aluminum frames/tracks with mounting straps
Measurement Path: Single Path (1 sensor pair)
Accuracy: Up to ±0.5% of measured flow
Repeatability: ±0.25%
Flow Velocity Range: 0–12 m/s (0–40 ft/s)
Enclosure Rating: IP67 / NEMA 4X
Housing Material: Epoxy-coated aluminum
Display: Illuminated LCD with keypad
Power Supply: 24–240 V AC/DC, 50/60 Hz
Communication Protocol: HART
Analog Output: 4–20 mA (Active/Passive)
Additional Outputs:
- Current
- Frequency
- Pulse
- Relay
Sensor Cable Length: 10 m coaxial cable with F-connectors
Cable Entries: 9 × M20 × 1.5
USB Interface: Supports SD card mass storage via USB
Operating Temperature: -40°C to +121°C
Protection Approval: Non-Ex (Standard Industrial Application)
Typical Applications:
- Water treatment plants
- Industrial process monitoring
- Pipeline flow measurement
- Oil & gas
- Utility and infrastructure systems

Additional Information

Device	Clamp-On
Type	SITRANS \| FS230 \| Clamp-On \| Highly \| Accurate ITRANS FS230 Clamp-On Highly accurate flow meter Flow ITRANS FS230 Clamp-On Highly accurate flow meter \| Meter

Experience precise flow measurement with the SITRANS FS230 Clamp-On flow meter, ideal for water, crude oil, and gas applications. Its non-invasive design ensures easy installation on pipes ranging from 12 to 20 inches, delivering accuracy within ±0.5%. Upgrade your industrial monitoring with this reliable, high-performance solution today!
