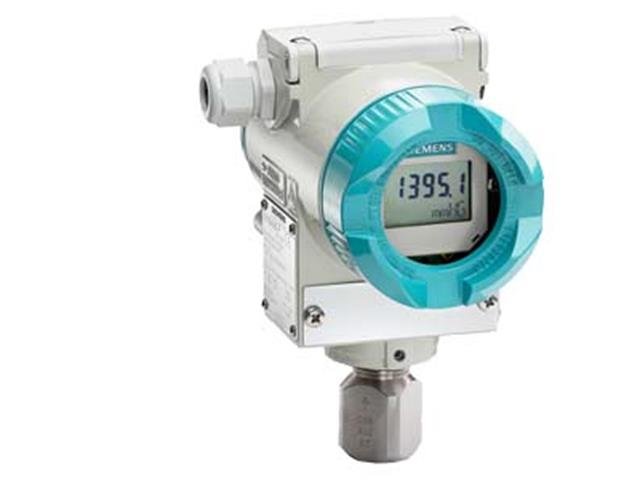

SITRANS P DS III / P410, Hart, 4-20 mA Pressure Transmitter Differential Pressure and Flow - Special Configuration
Overview
SITRANS P DS III can be used for measurement of air, steam and liquid flow. They are suitable for a wide range of industries including oil, gas, power, petrochemical and refineries. A three button set-up and local diagnostic features ensure these pressure transmitters are very accurate and user friendly. Designed to provide long and reliable service life Siemens P DS III pressure / flow transmitters allow parts replacement without the need for recalibration and are able to withstand harsh chemical and mechanical environments.
Features
Three button set-up
4-20 mA HART
Diagnosis and simulation mode
Parts can be replaced without need for recalibration.
Suitable for aggressive vapours and liquids
Output current alarms
Min-Max registers
Intrinsically safe
Flame and explosion proof
2% Accuracy
Loop check function
Push button lockout
Specifications
Media Monitored : Gas, Liquid, Vapour
Device Type : Digital Pressure Transmitter
Supply Voltage : 9 -24 V
Connection Type : 1/4 NPT
Maximum Pressure : 0.6bar
Material Aluminium
Minimum Media Temperature : -40 °C
Maximum Media Temperature : +85°C
Minimum Operating Temperature : -40°C
Maximum Operating Temperature : +85°C
Series : SITRANS P DS III
Additional Information
Device
Pressure Transmitter
Discover the SITRANS P DS III Pressure Transmitter, designed for precise measurement of air, steam, and liquid flow in demanding environments. With its user-friendly three-button setup and robust construction, this reliable device ensures accuracy and longevity, making it ideal for industries like oil, gas, and petrochemicals. Enjoy peace of mind with features like HART communication, intrinsic safety, and easy parts replacement without recalibration. Enhance your operations with this top-performing pressure transmitter today!
