7R10400000

Name: 7R10400000 - Communica [Part No: 7R10400000]
Brand: Hummel
SKU: 7R10400000
Price: 458.65 ZAR
Availability: InStock

SKU: 7R10400000

BRAND: Hummel

R 527.45_{(inc VAT)}
R 458.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

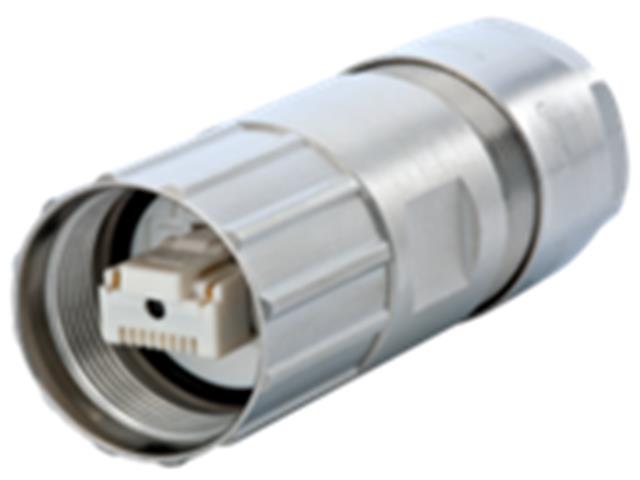

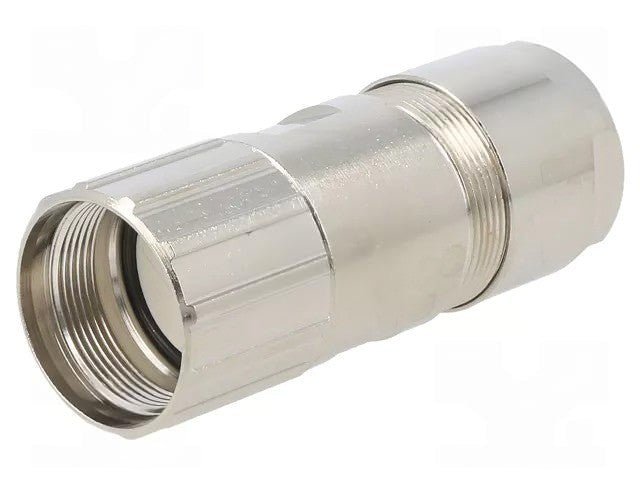

Circular Connector M23 RJ45 Connector/Cordset Housing Striaght. Female Threaded. Cable Clamp OD 3-7mm

M23 RJ45 Connector/Cordset Housing

Feature(s)

xcludes RJ45 Plug. Can be used with Pre Terminated Cordsets

Specifications

Housing type	Cable
Material housing	Zinc Die Cast, brass
Material housing surface	Nickel
Insert	RJ45
Version	Screw
Internal thread plug-in side	M23 x 1
Knurled nut-Ø plug-in side	27.2 mm
Locking type	Screw
Shield	unshielded

Seal type	O-Ring
Material seals/o-rings	FKM (FPM), NBR
Wrench size (SW1/SW2)	24/24 mm
Cable diameter	3 – 7 mm

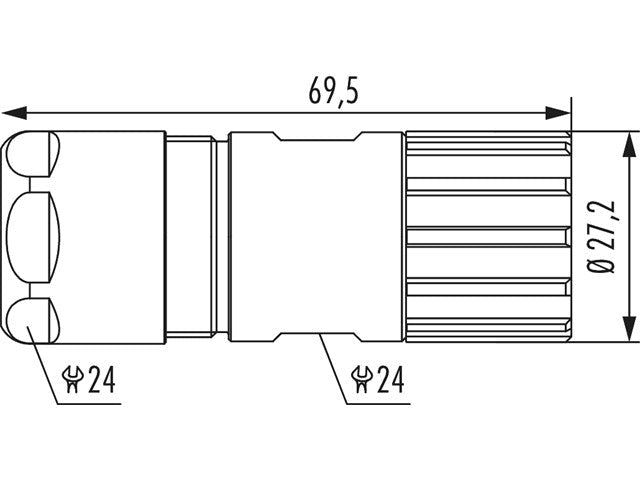

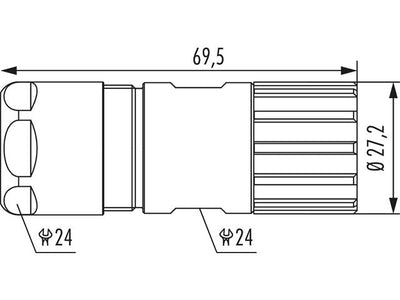

Length (L)	69.5 mm
Temperature range	-40°C to +125°C
Protection class	IP 67, IP 69 K
suitable contact inserts	7MRJ450007, A7RJ-081M41, A7RJ-821M51

Downloads

Datasheet - 7R10400000

Additional Information

Device

Housing

Elevate your connectivity with the 7R10400000 M23 RJ45 Circular Connector. Designed for durability and performance, this female threaded connector features a robust zinc die-cast housing and an IP67 protection rating, ensuring reliable operation in harsh environments. Perfect for secure data transmission, it accommodates cable diameters of 3-7mm, making it a versatile choice for your industrial needs.
