7R41008000

Name: 7R41008000 - Communica [Part No: 7R41008000]
Brand: Hummel
SKU: 7R41008000
Price: 796.50 ZAR
Availability: InStock

SKU: 7R41008000

BRAND: Hummel

R 915.98_{(inc VAT)}
R 796.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Connector Accessories

Category: Heavy Duty Power Connector Housings & Hoods

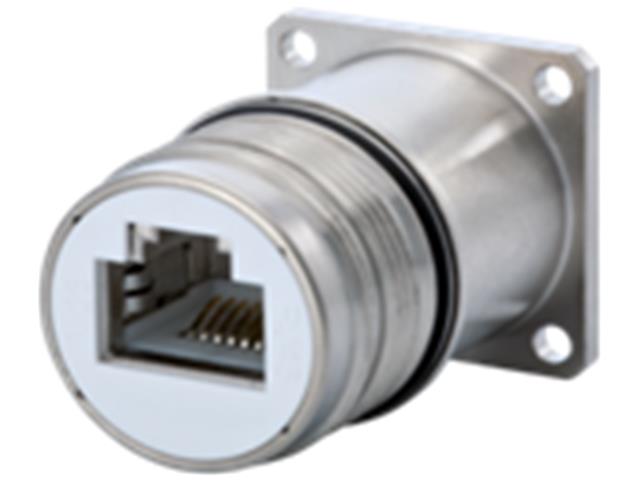

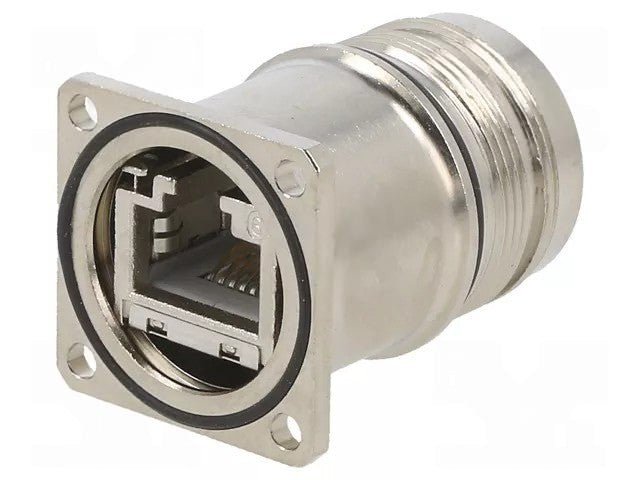

Circular Connector M23 RJ45 Panel Square Flinge. Feed Thrugh Shielded Jack-jack Connector Male Threaded with Anti-Vibrator. O Ring

M23 RJ45 Panel Connector

Specifications

Format: RJ45
Shape: Circular
Connection Type: Plug-in, Flange, Screw-Locked
Size: M23
Material (Housing): Brass, Zinc Die Cast
Housing Surface Material: Nickel
Installation Type: Front Wall
External Thread (Plug-in Side): M23 × 1
Locking Type: Screw
Shield: Unshielded
Seal Type: O-Ring
Material (Seals/O-rings): FKM (FPM), NBR
Coding Position / Panel Hole: Ø 20 + 0.1 mm
Flange Size: 25 × 25 mm
Hole Distance: 19.8 mm
Hole Diameter: 4 × Ø 2.7 mm
Length (L): 34.5 mm
Number of Poles: 8-Pole
Material: Brass, Die-Cast Zinc
Product Applications: External Thread, Panel
Protection Class: IP67, IP69K
Operating Temperature: -40°C to +125°C (−40°F to 257°F)

Additional Information

Device

Panel Connector

Discover the 7R41008000 Circular Connector, designed for reliable connectivity in demanding environments. This M23 RJ45 Panel Connector features a durable nickel-coated brass housing, IP67/IP69K protection, and an anti-vibration design, ensuring optimal performance from -40°C to +125°C. Upgrade your installations with superior durability and seamless connections today!
