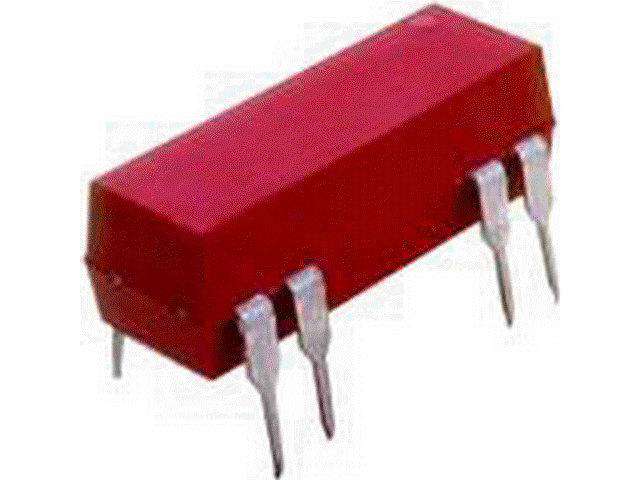

832A-2

SKU: 832A-2

BRAND: GORDOS


DIL Reed Relay • Form 2A • VCoil= 5V DC • IMax Switching= 500mA • RCoil= 200Ω • PCB Std Pin L/O • with Diode

Overview

Features

Specification

  • With Diode
    Model 832A-2
    Contact Form Form 2A
    Size 20x7x7mm
    Termination PCB
    Coil Rated Voltage 5V
    AC/DC Voltage DC
    Max. Switching Current 500mA
    Electrical Rating 500mA/200VDC
    Coil Resistance 200Ω
    Isolation Voltage 750V
    Pin Layout DIL
    No. of Poles 2 Pole(s)
    Key words 8002-05-01

Downloads

Datasheet Download
