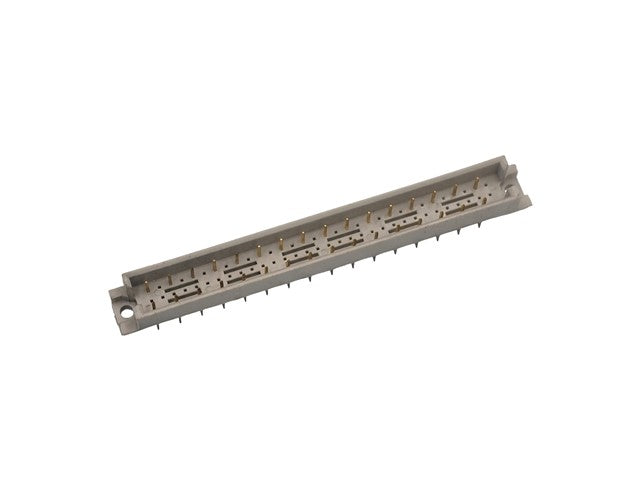

89361 Plug 32W Rows A & C Straight PCB
PCB Plug Connector
Feature(s)
- 32-way male DIN 41612 connector
- Rows A & C (RAC) contact arrangement
- Straight (vertical) PCB mounting
- Gold-plated contacts for low contact resistance
- Rugged glass-filled thermoplastic housing
- Reliable and durable connection
- Suitable for Eurocard and backplane applications
Specifications
- Product Type: DIN 41612 PCB Plug Connector
- Connector Style: Straight (Vertical)
- Standard: DIN 41612 / IEC 60603-2
- Connector Type: Male (Plug)
- Number of Contacts: 32
- Contact Arrangement: Rows A & C (RAC)
- Contact Configuration: 2 × 16
- Mounting Type: Through-Hole PCB Mount
- Orientation: Straight (Vertical)
- Termination Type: Straight Solder Pins
- Contact Pitch: 2.54 mm
- Row Spacing: 2.54 mm
- Contact Material: Copper Alloy
- Contact Plating: Gold-Plated Contact Area over Nickel
- Housing Material: Glass-Filled Thermoplastic (PBT)
- Housing Color: Grey
- Rated Current: 2 A per Contact
- Rated Voltage: 250 V AC
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥1,000 MΩ
- Dielectric Withstanding Voltage: 1,000 V AC
- Mating Cycles: ≥400
- Operating Temperature: -55°C to +125°C
- Flammability Rating: UL94 V-0
- Compliance:
- DIN 41612
- IEC 60603-2
- RoHS Compliant
Additional Information
| Device |
Connector |
| Type |
DIN41612 | PCB | Plug | Connector |
| Gender |
Male |
| No. of Contacts |
32 |
| No. of Pins |
32 |
| Termination |
Straight PCB |
| Row Positions |
Rows A,C |
Upgrade your connectivity with the 96P 6043 1531 3 DIN 41612 PCB Plug Connector. Featuring 32 gold-plated contacts for superior conductivity and a rugged thermoplastic housing, this connector ensures reliable performance in Eurocard and backplane applications. Experience durability and efficiency with a straight mounting design, perfect for your electronic projects.
