97-3102A-16S (0850) - Connector Accessories -

97-3102A-16S (0850)

Name: 97-3102A-16S (0850) - Communica [Part No: 97-3102A-16S (0850)]
Brand: Amphenol
SKU: 97-3102A-16S (0850)
Price: 141.75 ZAR
Availability: OutOfStock

SKU: 97-3102A-16S (0850)

BRAND: Amphenol

Sold Out
R 163.01_{(inc VAT)}
R 141.75_{(ex VAT)}

Collections: Connectors

Type: Connector Accessories

Category: Circular MIL DTL-5015/C-5015 Connectors

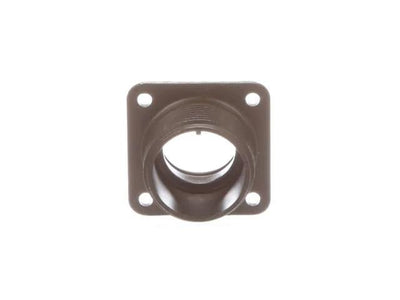

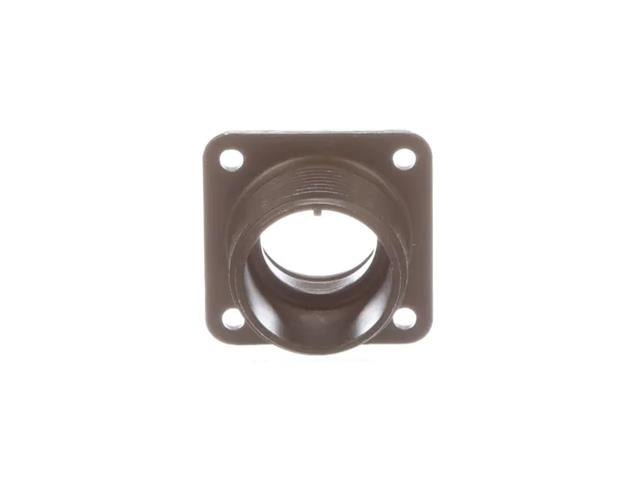

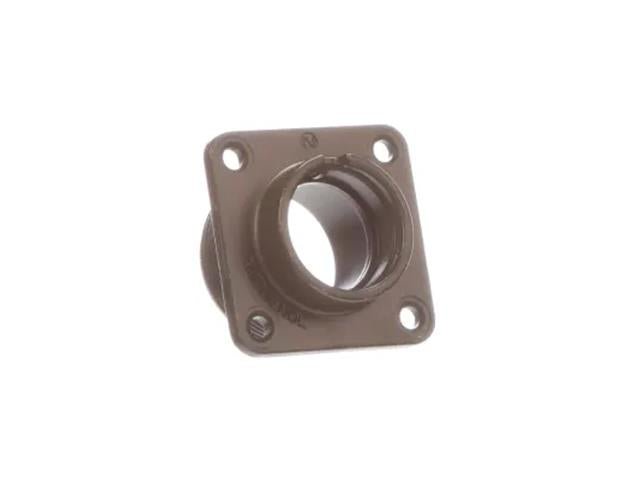

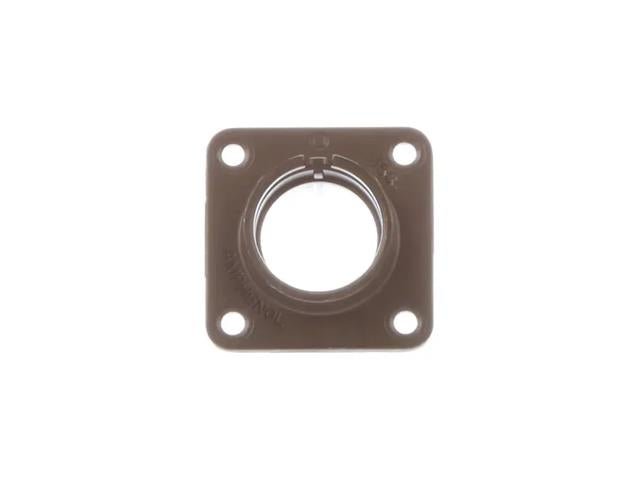

Circular Connector Square Flange Receptacle Shell Size 16S - 97 Series. C-5015

Circular Connector Square Flange Receptacle Shell

Feature(s)

Low cost, general duty non-environmental
Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
Low cost, general duty non-environmental
Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
Solder or crimp termination
Wide selection of shell styles and insert patterns
Wide selection of connector finishes cadmium or non-cadmium (environmentally friendly zinc alloy)
Threaded coupling, hard dielectric inserts
Solid or split shell construction
Accessories for both individual wire seal and jacketed cable
Threaded coupling, hard dielectric inserts
Solid or split shell construction
Accessories for both individual wire seal and jacketed cable
Durable, field-proven design
Non-rotating contacts
RoHS Compliant Product Available EU/2002/95/EC
UL Recognized E115497
CSA Recognized LR69183

Specifications

Agency Approvals: UL/CSA
Angle: Straight
Application: Commercial
Class: A
Contact Type: Socket
Family Name: 97 Series Connector Family
For Use With: 97 Series Type MIL-5015
Gender: Socket Shell Only
Housing Finish: Olive Drab Cadmium
Housing Material: Aluminum Alloy
Housing Type: Metal
IP Rating: IP67
Mating Type: Female
MIL Type: SAE AS50151
Mounting Hole Diameter: 0.12 "
Mounting Type: Chassis
Number of Contacts: None
Primary Type: MIL-5015
Series: 97 Series
Shell Size: 16S
Strain Relief: Solid
Type: 5015 Commercial

Downloads

Datasheet - 97-3102A-16S (0850)

Additional Information

Device	Connector
Type	Square \| Flange Receptacle \| Shell
Highlights	Shell only - No Insert.
