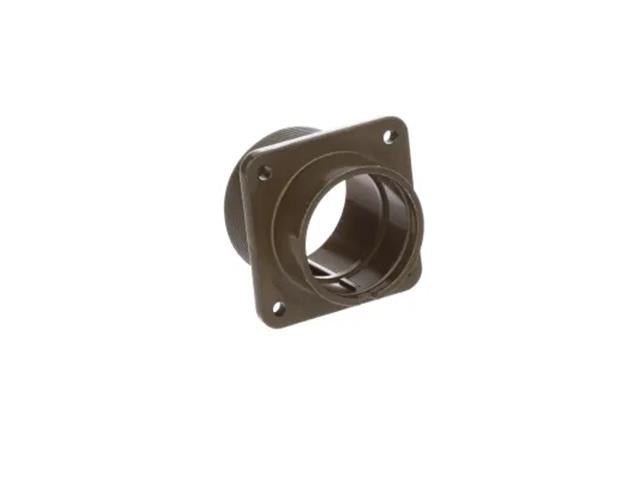

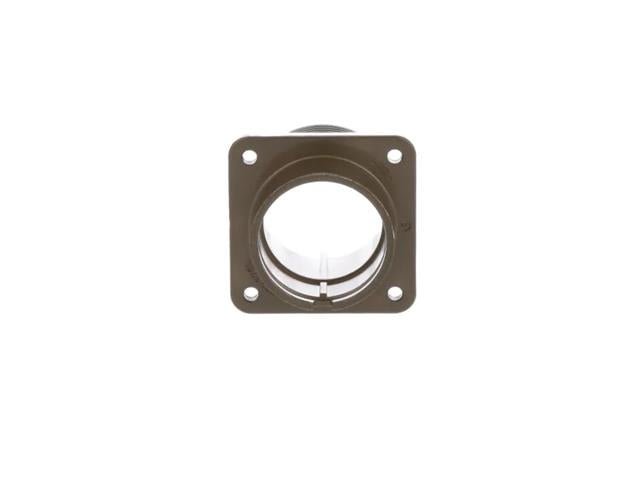

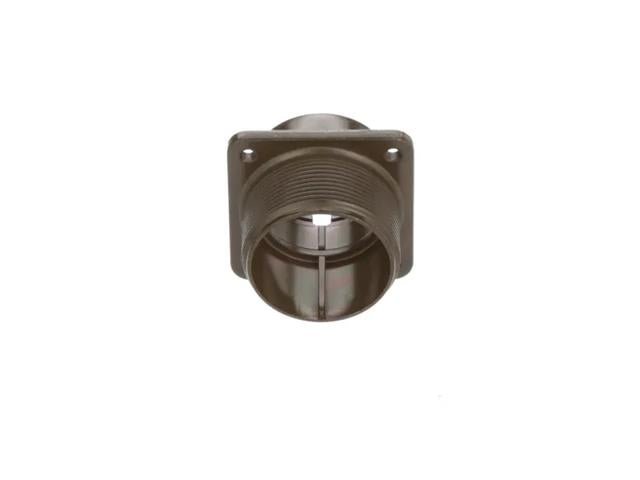

Circular Connector Square Flange Receptacle Shell size 22 - 97 Series C-5015
Circular Connector Square Flange Receptacle
Feature(s)
- Low cost, general duty non-environmental
- Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
- Low cost, general duty non-environmental
- Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
- Solder or crimp termination
- Wide selection of shell styles and insert patterns
- Wide selection of connector finishes cadmium or non-cadmium (environmentally friendly zinc alloy)
- Threaded coupling, hard dielectric inserts
- Solid or split shell construction
- Accessories for both individual wire seal and jacketed cable
- Threaded coupling, hard dielectric inserts
- Solid or split shell construction
- Accessories for both individual wire seal and jacketed cable
- Durable, field-proven design
- Non-rotating contacts
- RoHS Compliant Product Available EU/2002/95/EC
- UL Recognized E115497
- CSA Recognized LR69183
Specifications
- Agency Approvals: UL/CSA
- Angle: Straight
- Application: Commercial
- Class: A
- Family Name: 97 Series Connector Family
- For Use With: 97 Series Type MIL-5015
- Gender: Socket Shell Only
- Housing Finish: Olive Drab Cadmium
- Housing Material: Aluminum Alloy
- Housing Type: Metal
- IP Rating: IP67
- Mating Type: Threaded
- MIL Type: SAE AS50151
- Mounting Hole Diameter: 0.12"
- Mounting Type: Free Hanging (In-Line)
- Number of Contacts: None
- Primary Type: MIL-5015
- Series: 97 Series
- Shell Size: 22
- Strain Relief: Solid
- Type: 5015 Commercial
Downloads
Additional Information
| Device |
Connector |
| Type |
Square | Flange Receptacle | Shell |
| Highlights |
Shell only - No Insert |
Discover the reliable 97-3102A-22 Circular Connector, designed for commercial use with a durable square flange receptacle. Featuring a robust aluminum alloy construction and IP67 rating, it ensures splash-proof performance in diverse environments. Experience easy installation with solder or crimp termination options, making it perfect for your electrical connections. Upgrade your projects with this UL and CSA recognized connector for exceptional reliability and safety.
