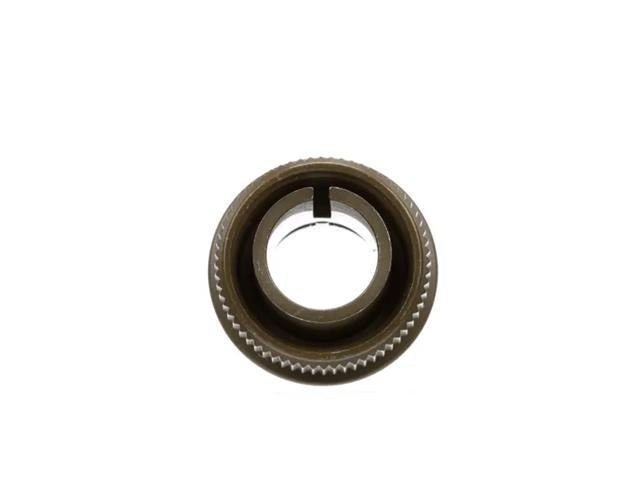

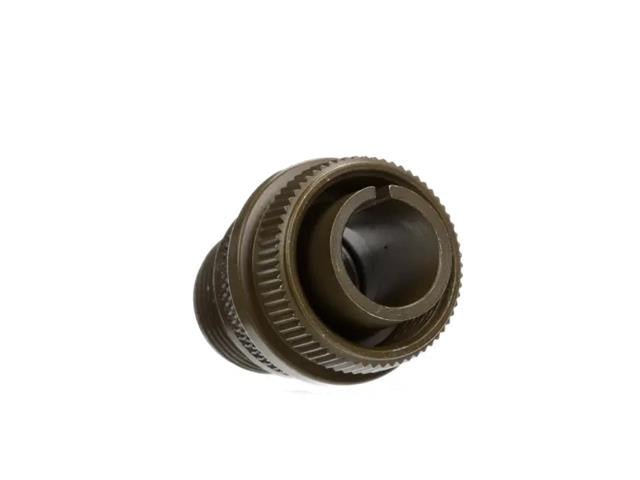

97-3106A-14S (0850) - Connector Accessories -

97-3106A-14S (0850)

Name: 97-3106A-14S (0850) - Communica [Part No: 97-3106A-14S (0850)]
Brand: Amphenol Industrial
SKU: 97-3106A-14S (0850)
Price: 232.70 ZAR
Availability: OutOfStock

SKU: 97-3106A-14S (0850)

BRAND: Amphenol Industrial

Sold Out
R 267.61_{(inc VAT)}
R 232.70_{(ex VAT)}

Collections: Connectors

Type: Connector Accessories

Category: Cable End Plug Shell

Circular Connector Cable End Plug Shell Size 14S - 97 Series C-5015

Cable End Plug Shell

Feature(s)

Low cost, general duty non-environmental
Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
Low cost, general duty non-environmental
Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
Solder or crimp termination
Wide selection of shell styles and insert patterns
Wide selection of connector finishes cadmium or non-cadmium (environmentally friendly zinc alloy)
Threaded coupling, hard dielectric inserts
Solid or split shell construction
Accessories for both individual wire seal and jacketed cable
Threaded coupling, hard dielectric inserts
Solid or split shell construction
Accessories for both individual wire seal and jacketed cable
Durable, field-proven design
Non-rotating contacts
RoHS Compliant Product Available EU/2002/95/EC
UL Recognized E115497
CSA Recognized LR69183

Specifications

Agency Approvals: UL/CSA
Angle: Straight
Application: Commercial
Class: A
Contact Type: Socket
Family Name: 97 Series Connector Family
For Use With: 97 Series Type MIL-5015
Gender: Plug Shell Only
Housing Finish: Olive Drab Cadmium
Housing Material: Aluminum Alloy
Housing Type: Metal
IP Rating: IP67
Mating Type: Female
MIL Type: SAE AS50151
Mounting Type: Free Hanging
Number of Contacts: None
Primary Type: MIL-5015
Series: 97 Series
Shell Size: 14S
Strain Relief: Solid
Type: 5015 Commercial

Downloads

97-3106A-16S (0850)-Datasheet

Additional Information

Device	Plug Shell
Type	Cable End
Highlights	Shell only - No Insert. Str Relief 3057-1007. Rubber Bush 3420-6
