97-3106A-16S (0850)
SKU: 97-3106A-16S (0850)
BRAND: Amphenol Industrial
R 253.00 (inc VAT) R 220.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

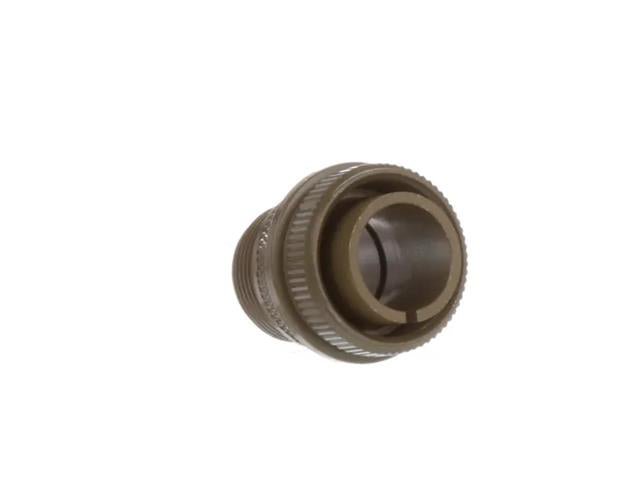

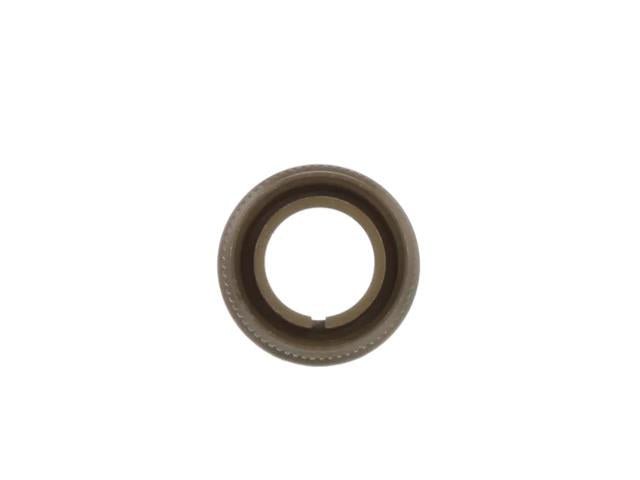

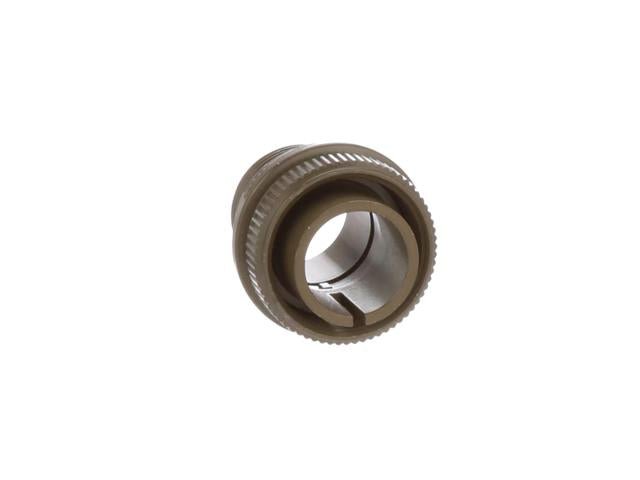

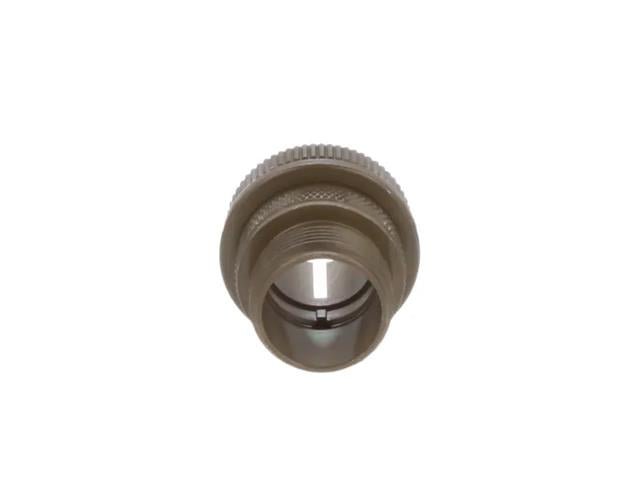

Circular Connector Cable End Plug Shell Size 16S - 97 Series C-5015
Circular Connector Cable End Plug Shell
Feature(s)
Low cost, general duty non-environmental
Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
Low cost, general duty non-environmental
Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
Solder or crimp termination
Wide selection of shell styles and insert patterns
Wide selection of connector finishes cadmium or non-cadmium (environmentally friendly zinc alloy)
Threaded coupling, hard dielectric inserts
Solid or split shell construction
Accessories for both individual wire seal and jacketed cable
Threaded coupling, hard dielectric inserts
Solid or split shell construction
Accessories for both individual wire seal and jacketed cable
Durable, field-proven design
Non-rotating contacts
RoHS Compliant Product Available EU/2002/95/EC
UL Recognized E115497
CSA Recognized LR69183
Specifications
Agency Approvals: UL/CSA
Angle: Straight
Application: Commercial
Class: A
Contact Type: Socket
Family Name: 97 Series Connector Family
For Use With: 97 Series Type MIL-5015
Gender: Plug Shell Only
Housing Finish: Olive Drab Cadmium
Housing Material: Aluminum Alloy
Housing Type: Metal
IP Rating: IP67
Mating Type: Female
MIL Type: SAE AS50151
Mounting Type: Free Hanging
Number of Contacts: None
Primary Type: MIL-5015
Series: 97 Series
Shell Size: 16S
Strain Relief: Solid
Type: 5015 Commercial
Downloads
Additional Information
Device
Connector
Type
Circular | Cable End | Plug Shell
Highlights
Shell only - No Insert. Straight Relief 3057-1008. Rubber Bush 3420-8
Discover the 97-3106A-16S Circular Connector Cable End Plug, designed for durability and versatility in commercial applications. With a robust aluminum alloy construction and IP67 rating, this connector ensures reliable performance in various environments. Enjoy easy solder or crimp termination and a wide selection of shell styles, making it the perfect choice for your connectivity needs.
