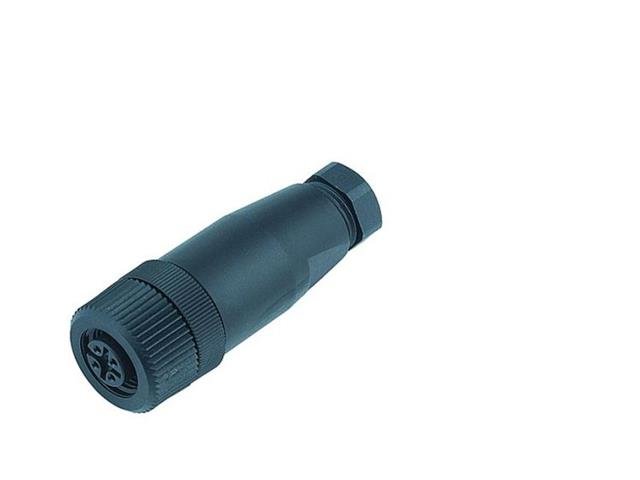

Circular Connector M12 A COD Cable Female Straight. Plastic 4 Pole Screw Term PG9 Cable Entry (Black Housing)
Female Cable Connector
Specifications
- Series: 713
- Connector Locking System: bolted
- Termination: screw
- Wire Gauge (AWG): 18
- Degree of Protection: IP67
- Mechanical Operation: > 50 Mating cycles
- Upper Temperature ℃: 85
- Lower Temperature ℃ : -40
- Rated Voltage: 250
- Rated Impulse Voltage: 2500
- Pollution Degree: 3
- Overvoltage Category: II
- Material Group: II
- Rated Current: 4 A
- Volume Resistivity: ≤ 8 mΩ
- Material of Contact: CuZn (Messing)
- Contact Plating: CuSnZn (optalloy)
- Material of Contact Body: PA
- Cable Outlet: 4 - 6 mm
- Approval 1: UL
Downloads
Additional Information
Device |
Connector |
Type |
Female | Cable |
