99-0434-500-05

Name: 99-0434-500-05 - Communica [Part No: 99-0434-500-05]
Brand: Binder
SKU: 99-0434-500-05
Price: 290.30 ZAR
Availability: InStock

SKU: 99-0434-500-05

BRAND: Binder

In Stock
R 333.85_{(inc VAT)}
R 290.30_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

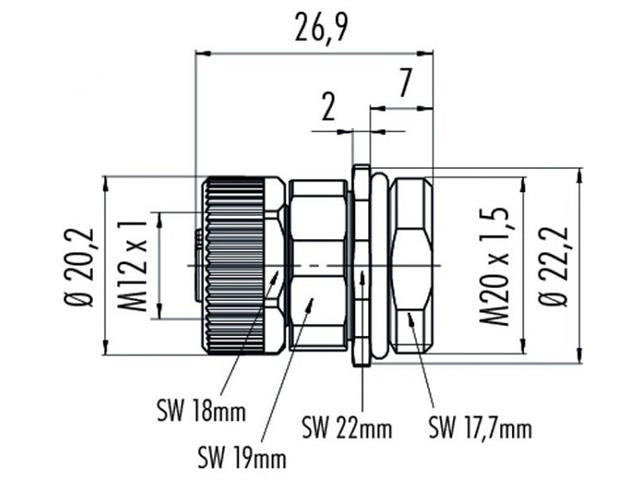

Circular Connector M12 A COD Panel Female 5 Pole Screw Clamp, PowER, M20 X 1,5 Fixing Thread 2A 125V IP67

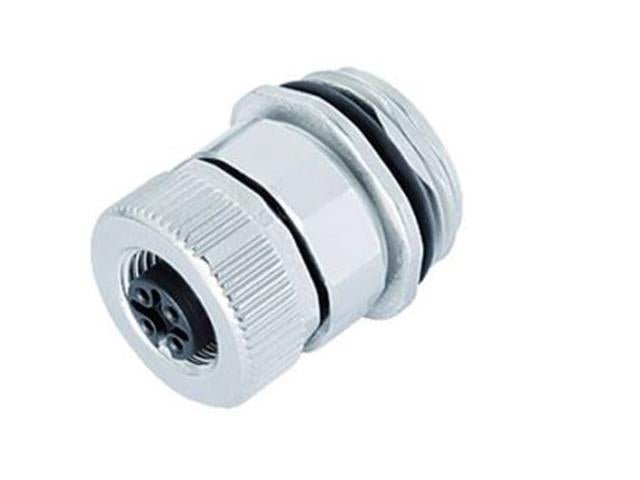

M12 A COD Panel Female Circular Connector

Specifications

Connector Locking System : M12
Termination : removable screw
Wire Gauge (AWG) : 16
Degree of Protection : IP67
Mechanical Operation : > 50 Mating cycles
Upper Temperature °C : 85
Lower Temperature °C : -40
Rated Voltage: 250
Rated Impulse Voltage : 2500
Pollution Degree : 3
Overvoltage Category : II
Material Group: II
Rated Current : 8 A
Volume Resistivity : ≤ 3 mΩ
Material of Contact : CuSn (Bronze), CuZn (Messing)
Contact Plating : Au (gold)
Material of Contact Body : PA

Downloads

Datasheet - 99-0434-500-05

Additional Information

Device	Connector
Type	M12 \| A COD \| Panel \| Female \| Circular
