99-0437-14-05

Name: 99-0437-14-05 - Communica [Part No: 99-0437-14-05]
Brand: Binder
SKU: 99-0437-14-05
Price: 269.50 ZAR
Availability: OutOfStock

SKU: 99-0437-14-05

BRAND: Binder

Sold Out
R 309.93_{(inc VAT)}
R 269.50_{(ex VAT)}

Collections: Brands, Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

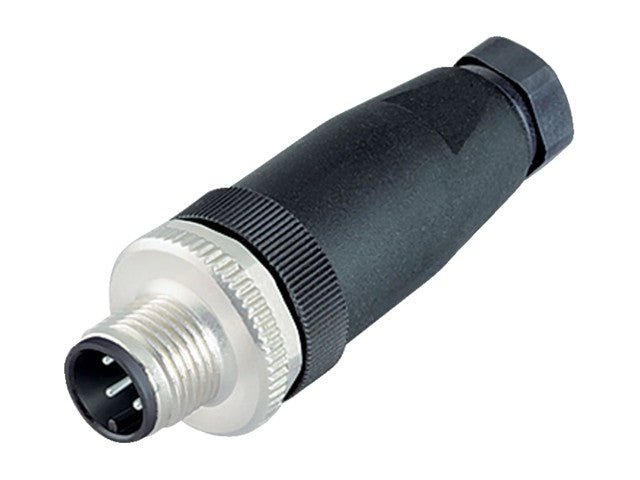

Circualar Connector Power M12 A COD Cable Male Straigh. 5 Pole Screw Termination for Max 0,75mm Square. Wire Cable Entry 4-6mm 4A-125V IP67

Circualar Connector Power M12 A COD Cable

Specifications

Connector design	Male cable connector
Type standard	DIN EN 61076-2-101
Coding	A-coded
Version	Connector pin straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Connection cross-section	max. 0.75 mm² / AWG 18
Cable outlet	4.0-6.0 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	21.44
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V (125 V UL)
Rated impulse voltage	1500 V
Rated current	4.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PA
Contact material	CuZn (brass)
Contact plating	CuSnZn (Optalloy)
Locking material	Zinc die-cast nickel-plated
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	195937a4-ca55-46e6-90e3-558caad49afc

Downloads

Datasheet - 99-0437-14-05

Additional Information

Device

Cable

Upgrade your connections with the M12 A COD Circular Connector. Designed for reliability, this male cable connector features a durable screw termination, IP67 protection, and operates efficiently in extreme temperatures. Ensure safe and secure electrical connections for your devices with this high-quality component.
