99-0437-19-05 - Circular Connectors - 2050001613950

99-0437-19-05

SKU: 99-0437-19-05

BRAND: Binder

In Stock
R 368.00_{(inc VAT)}
R 320.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

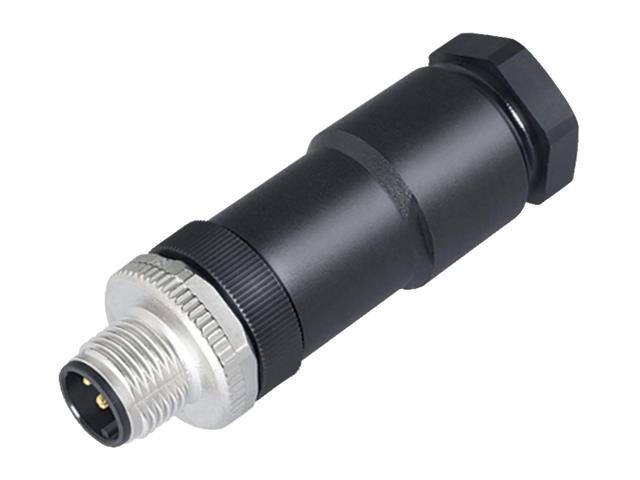

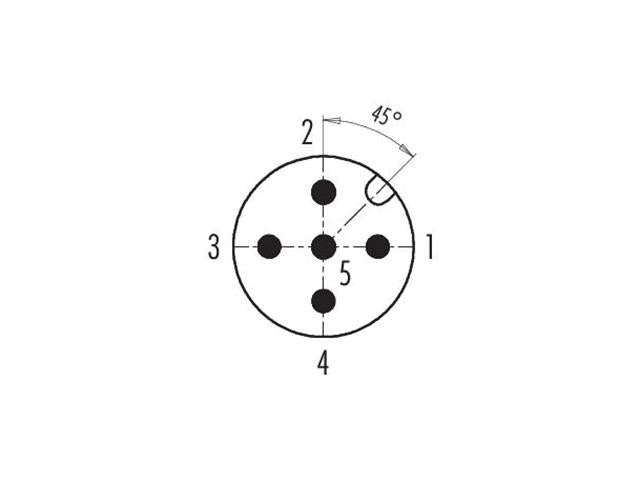

Circular Connector Power M12 A COD Cable Male Striaght. 5 Pole Screw Termination for Max 1,5mm sq. Wire Cable Entry 8-10mm 8A/2A-125V IP67

M12 Power A COD Circular Connector

Specifications

Connector design : Male cable connector
Type standard : DIN EN 61076-2-101
Version : Connector pin straight
Connector locking system : screw
Termination : screw clamp
Degree of protection : IP67
Cross-sectional area : max. 1.50 mm² / AWG 16

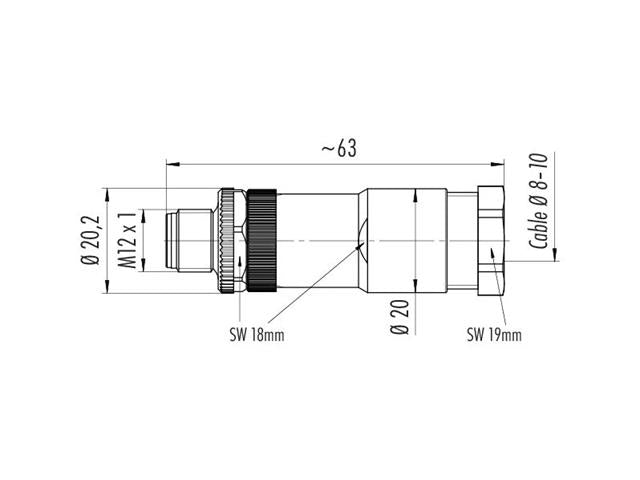

Cable outlet : 8.0-10.0 mm
Temperature range from/to : -40 °C / 85 °C
Mechanical operation : > 100 Mating cycles
Weight (g) : 23.91

Electrical parameters

Rated voltage : 60 V
Rated impulse voltage : 1500 V
Rated current : contacts 1-4: 8 A / Contact 5: 2 A
Insulation resistance : > 10⁸ Ω
Pollution degree : 3
Overvoltage category : II
Insulating material group : III
EMC compliance : unshielded

Downloads

Datasheet - 99-0437-19-05

Additional Information

Device	Connector
Type	M12 \| Power \| A COD \| Circular
