99-0608-00-03

SKU: 99-0608-00-03

BRAND: Binder



R 102.35 (inc VAT)
R 89.00 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

Collections:

Type: Circular Connectors

Category: Circular DIN Bayonet Connectors

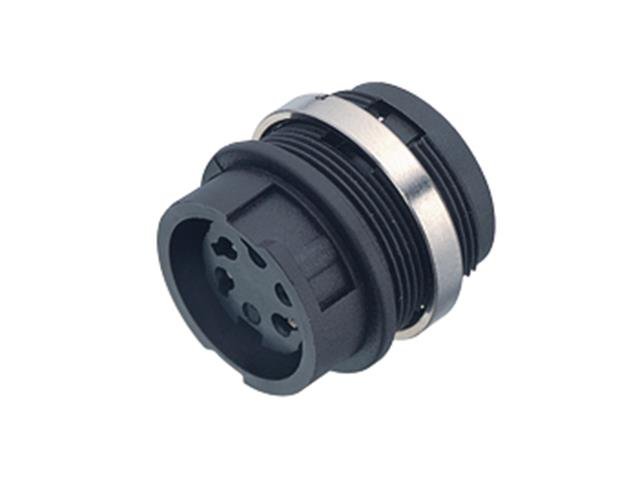

Circular Connector Bayonet Panel Female 3 Pole 3 DIN 6-8 mm Cable Outlet Solder Term IP40 7A 250V

Bayonet Panel Female Circular Connector

Specifications

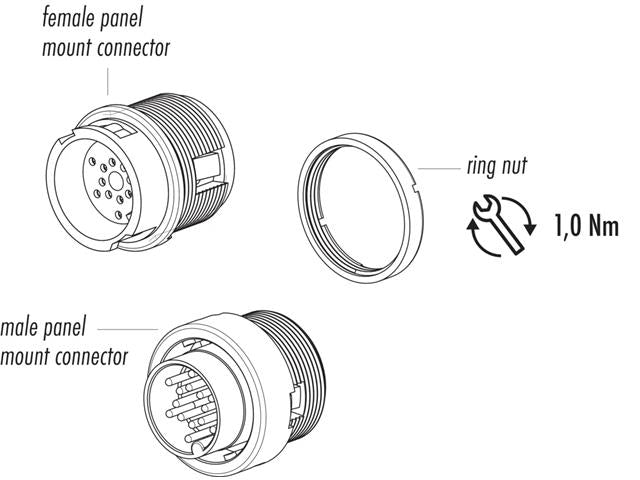

  • Connector design : Female panel mount connector
  • Version : Connector socket straight
  • Connector locking system : Bayonet
  • Termination : solder
  • Degree of protection : IP40
  • Cross-sectional area : max. 0.75 mm² / AWG 18
  • Temperature range from/to : -40 °C / 85 °C
  • Mechanical operation : > 500 Mating cycles
  • Weight (g) : 6.02
  • Customs tariff number : 85369010

Electrical parameters

  • Rated voltage : 250 V
  • Rated impulse voltage : 1500 V
  • Rated current (40 °C) : 7.0 A
  • Insulation resistance : ≥ 10¹⁰ Ω
  • Pollution degree : 1
  • Overvoltage category : I
  • Insulating material group  : III
  • EMC compliance : unshielded

Downloads

Additional Information

Device Connector
Type Bayonet Panel | Female | Circular
Discover the 99-0608-00-03 Bayonet Panel Female Circular Connector, designed for reliable electrical connections in various applications. With an IP40 rating and a sturdy bayonet locking system, this connector ensures durability and security in demanding environments. Ideal for 3-pole configurations and capable of withstanding temperatures from -40 °C to 85 °C, it guarantees performance you can trust. Upgrade your connectivity solutions with this high-quality, easy-to-install connector today!
