SKU: 99-0640-29-05

BRAND: Binder

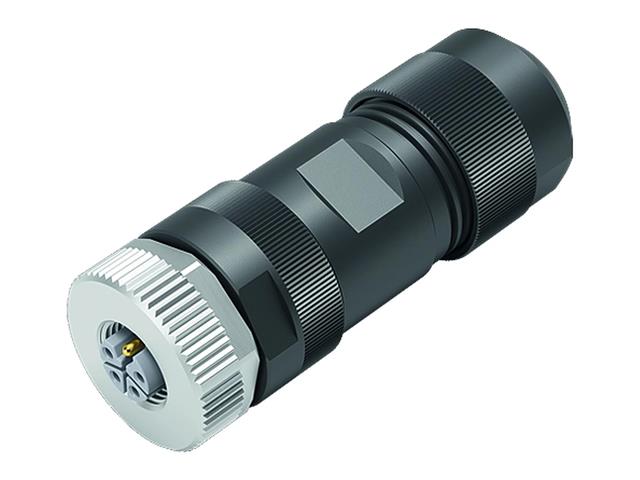

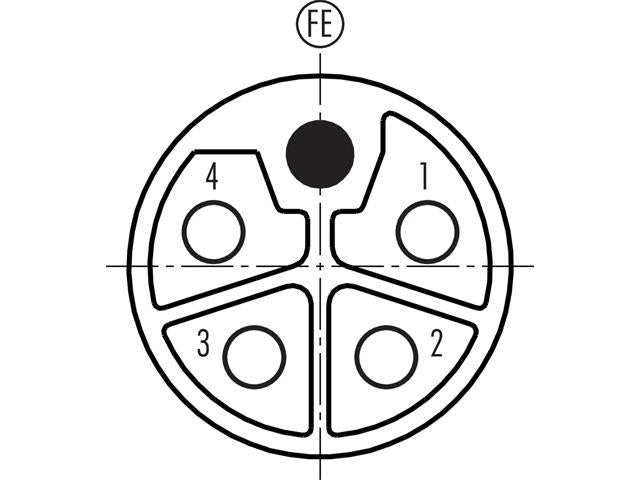

Circular Connector M12-L Cable Female Straight 5 Pole(4+FE) Screw Lock 13mm Cable Entry Unshielded IP67, UL M12X1.0

M12-L Cable Female Straight Circular Connector


Connector design Female cable connector
Version Connector socket straight
Connector locking system screw
Termination screw clamp
Degree of protection IP67
Cross-sectional area max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule
Cable outlet 8.0-13.0 mm
Temperature range from/to -40 °C / 105 °C
Mechanical operation > 100 Mating cycles
Weight (g) 50.37
Customs tariff number 85369010
Electrical parameters
Rated voltage 63 V
Rated impulse voltage 1500 V
Rated impulse voltage UL 1500 V
Rated current (40 °C) 12 A (at 1.5 mm²/AWG 16) / 16 A (at 2.5 mm²/AWG 14)
Insulation resistance > 10¹⁰ Ω
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Housing material PA
Contact body material PA (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)


Additional Information

Device Connector
Type M12-L Cable | Female | Straight | Circular
