99-1436-910-05

Name: 99-1436-910-05 - Communica [Part No: 99-1436-910-05]
Brand: Binder
SKU: 99-1436-910-05
Price: 465 ZAR
Availability: InStock

SKU: 99-1436-910-05

BRAND: Binder

R 534.75_{(inc VAT)}
R 465.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

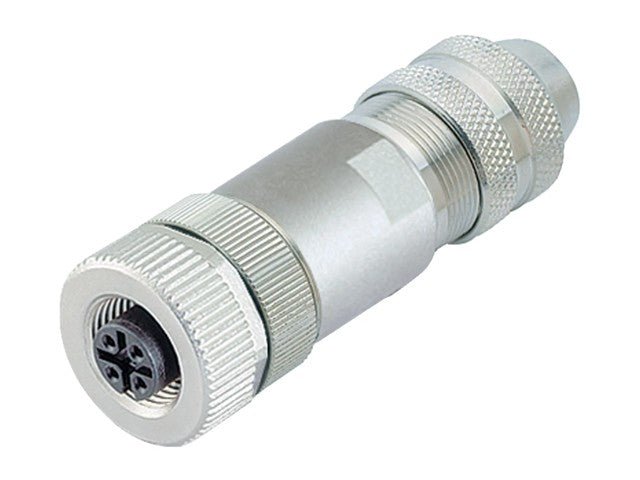

Circular Connector M12 B COD Cable Female Straight. 5 Pole Screw Terminal 8,5mm Cable Entry Ring Shield IP67

M12 B COD Cable Female Circular Connector

Specifications

Connector design	Female cable connector
Type standard	DIN EN 61076-2-101
Version	Connector socket straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Connection cross-section	max. 0.75 mm² / AWG 18
Cable outlet	6.5-8.5 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	46.19
Customs tariff number	85369010
Country of Origin	HU

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding ring

Downloads

Datasheet - 99-1436-910-05

Additional Information

Device	Connector
Type	M12 \| B COD \| Cable \| Female \| Circular

Discover the reliable 99-1436-910-05 M12 B COD Female Circular Connector, designed for seamless connections in industrial applications. With robust IP67 protection and a temperature range of -40 °C to 85 °C, this connector ensures durability and performance in challenging environments. Enhance your projects with secure screw termination and optimal shielding for superior EMC compliance.
