99-2430-14-03

Name: 99-2430-14-03 - Communica [Part No: 99-2430-14-03]
Brand: Binder
SKU: 99-2430-14-03
Price: 258.84 ZAR
Availability: InStock

SKU: 99-2430-14-03

BRAND: Binder

R 297.67_{(inc VAT)}
R 258.84_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

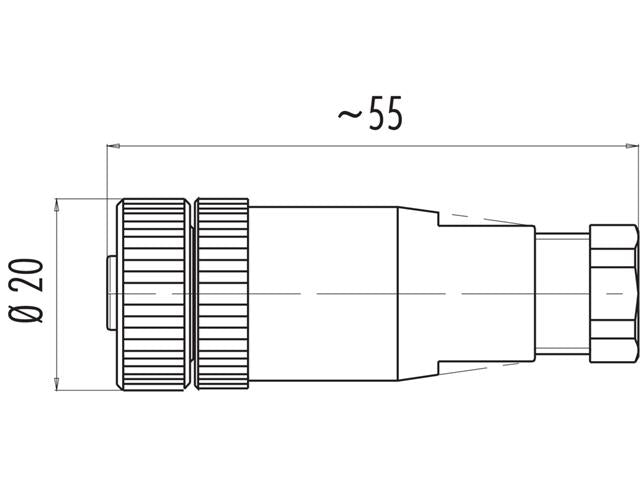

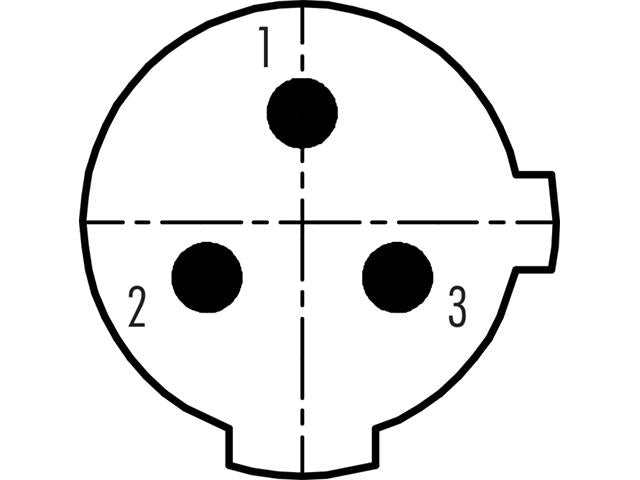

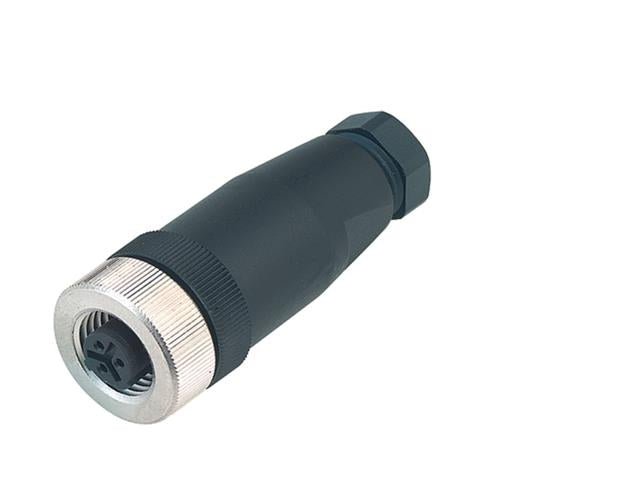

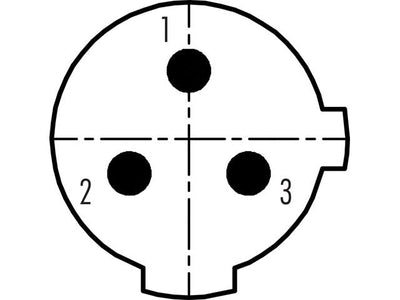

Circular Connector M12 US COD (1/2" UNF) Cable Female Straight. 3 Pole Screw Terminal IP67

M12 US COD Circular Connector

Specifications

Connector design : female cable connector
Version : connector male straight
Connector locking system : screw
Termination : screw clamp
Degree of protection : IP67
Cross-sectional area : max. 0.75 mm² / max. AWG 18

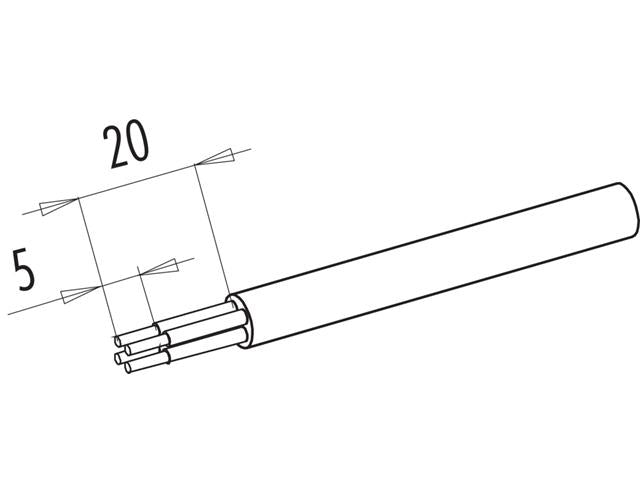

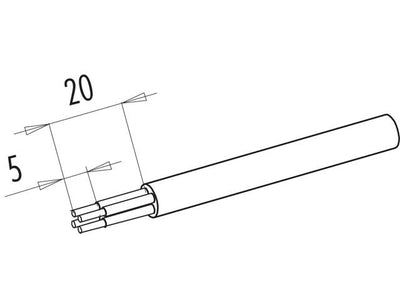

Cable outlet : 4.0 - 6.0 mm
Temperature range from/to : -25 °C / 85 °C
Mechanical operation : > 50 Mating cycles
Weight (g) : 22.56

Electrical parameters

Rated voltage : 250 V
Rated impulse voltage : 2500 V
Rated current (40 °C) : 4,0 A
Insulation resistance : ≥ 10¹⁰ Ω
Pollution degree : 3
Overvoltage category : II
Insulating material group : II
EMC compliance : unshielded

Material

Housing material : PA
Contact body material : PA
Contact material : CuZn (brass)
Contact plating : CuSnZn (Optalloy)
REACH SVHC : CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
SCIP number : SCIP-number not available

Downloads

Datasheet - 99-2430-14-03

Additional Information

Device	Connector
Type	M12 \| US COD \| Circular

Discover the reliable 99-2430-14-03 M12 Circular Connector, designed for durability and performance. With an IP67 rating and screw terminal for easy installation, this female cable connector ensures secure connections in challenging environments. Perfect for various applications, it supports up to 4A and operates efficiently in extreme temperatures. Upgrade your connectivity solutions today!
