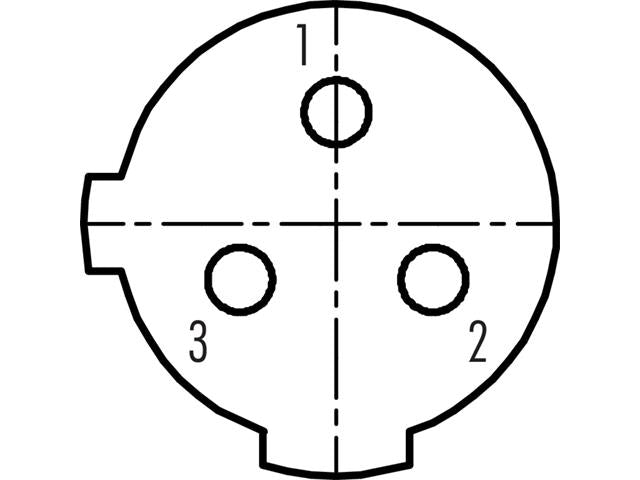

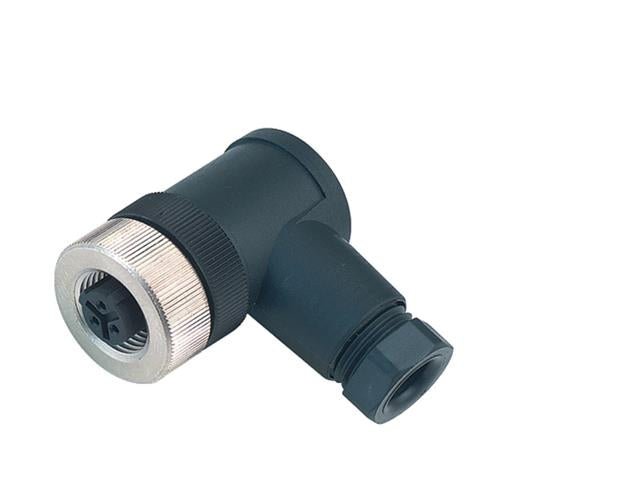

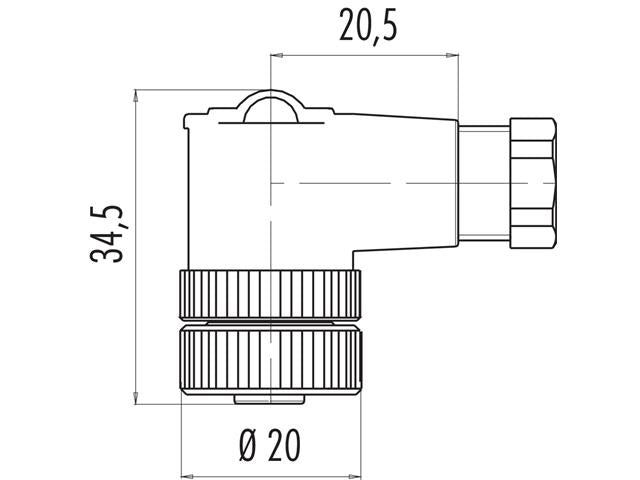

• Connector design : female angled connector
• Version : connector female angled
• Connector locking system : screw

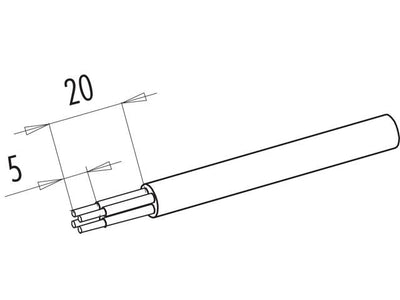

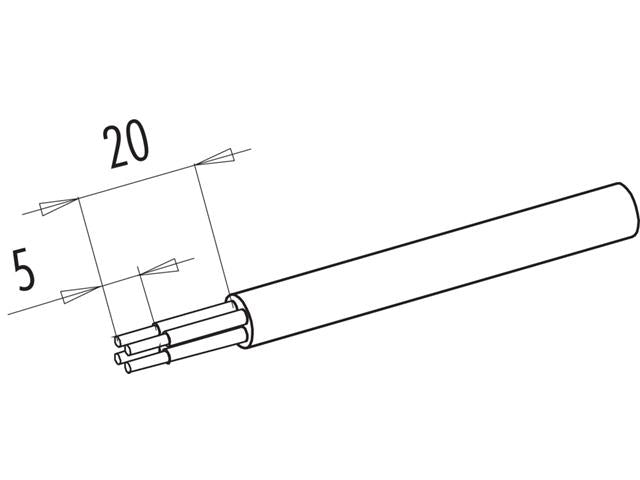

• Termination : screw clamp
• Degree of protection : IP67
• Cross-sectional area : max. 0.75 mm² / max. AWG 18
• Cable outlet : 4.0 - 6.0 mm
• Twistability : 90° (4 coding options)
• Temperature range from/to : -25 °C / 85 °C
• Mechanical operation : > 50 Mating cycles
• Weight (g) : 22.71

Electrical parameters

• Rated voltage : 250 V
• Rated impulse voltage : 2500 V
• Rated current (40 °C) : 4,0 A
• Insulation resistance : ≥ 10¹⁰ Ω
• Pollution degree : 3
• Overvoltage category : II
• Insulating material group : II
• EMC compliance : unshielded

Material

• Housing material : PA
• Contact body material : PA
• Contact material : CuZn (brass)
• Contact plating : CuSnZn (Optalloy)
• REACH SVHC : CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
• SCIP number : 2c817219-1aef-4fad-adde-0bea85184522

1. Datasheet - 99-2430-24-03
