99 - 2444 - 12 - 05 - Circular Connectors - 4099879116192

99-2444-12-05

Name: 99-2444-12-05 - Communica [Part No: 99-2444-12-05]
Brand: Binder
SKU: 99-2444-12-05
Price: 452 ZAR
Availability: InStock

SKU: 99-2444-12-05

BRAND: Binder

R 519.80_{(inc VAT)}
R 452.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Power Connectors IP67 and IP68

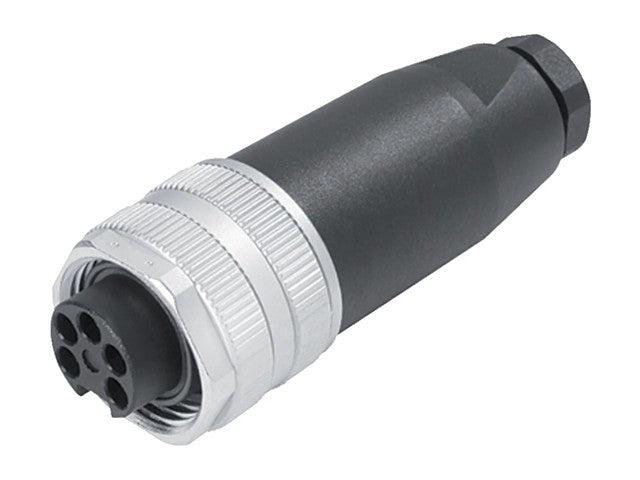

Circular Connector 7/8" Cable Female 5 Pole Screw Terminal PG7 Cable Entry IP67

7/8" Female Cable Connector

Specifications

Connector design	Female cable connector
Version	Connector socket straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Connection cross-section	max. 1.50 mm² / AWG 16
Cable outlet	6.0-8.0 mm
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 50 Mating cycles
Weight (g)	45.90
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	300 V (600 V UL)
Rated impulse voltage	4000 V
Rated current	9.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	3
Overvoltage category	III
Insulating material group	III
EMC compliance	unshielded

Housing material	PBT
Contact body material	PUR/PA
Contact material	CuZn (brass) / CuSn (bronze)
Contact plating	Au (gold)
Locking material	Zinc die-cast nickel-plated
REACH SVHC	CAS 7439-92-1 (Lead)

Downloads

Datasheet - 99-2444-12-05

Additional Information

Device	Connector
Type	7/8" \| Female \| Cable

Discover the 99-2444-12-05 Circular Connector, a reliable 7/8" female cable connector designed for durability and performance. With an IP67 rating, it ensures optimal protection against dust and water, making it perfect for demanding environments. Enjoy secure screw terminal connections with a robust locking system, suitable for a wide range of applications. Upgrade your connectivity solutions today!
