99-3360-00-03

Name: 99-3360-00-03 - Communica [Part No: 99-3360-00-03]
Brand: Binder
SKU: 99-3360-00-03
Price: 312 ZAR
Availability: InStock

SKU: 99-3360-00-03

BRAND: Binder

R 358.80_{(inc VAT)}
R 312.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

Circular Connector M8 Cable Female Straight, 3 Pole Screw Lock Sold Termination 5,0mm Cable Entry Shield 4A 30V IP67

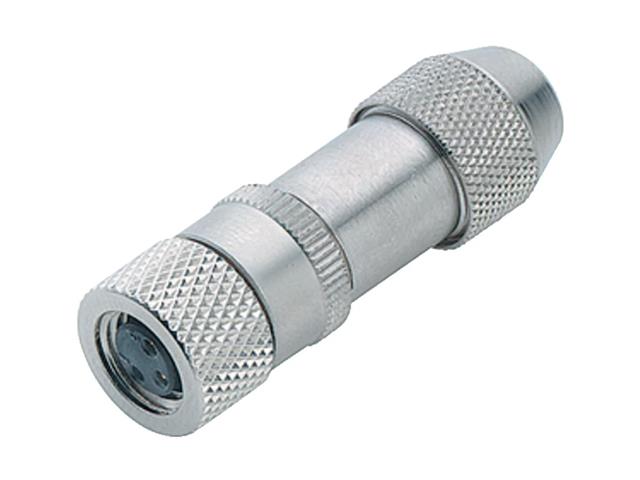

M8 Cable Female Straight Circular Connector

Specifications

Connector design : Female cable connector
Type standard : DIN EN 61076-2-104
Version : Connector socket straight
Connector locking system : screw
Termination : solder
Degree of protection : IP67
Cross-sectional area : 0.25 mm² / AWG 24
Cable outlet : 3.5-5.0 mm
Temperature range from/to : -40 °C / 85 °C
Mechanical operation : > 100 Mating cycles
Weight (g) : 16.45

Electrical parameters

Rated voltage : 30 V
Rated impulse voltage : 1500 V
Rated current : 4.0 A
Pollution degree : 3
Overvoltage category : III
Insulating material group : III
EMC compliance : shieldable
Shield connection : Shielding ring

Additional Information

Device	Connector
Type	M8 \| Cable \| Female \| Straight \| Circular

Upgrade your connectivity with the 99-3360-00-03 M8 Female Straight Circular Connector. Designed for durability, this IP67-rated connector ensures a secure connection with screw lock and solder termination, perfect for various applications. With a robust temperature range and excellent shielding, it's ideal for reliable performance in challenging environments.
