99-3360-100-03

SKU: 99-3360-100-03

BRAND: Binder

In Stock
R 632.50_{(inc VAT)}
R 550.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

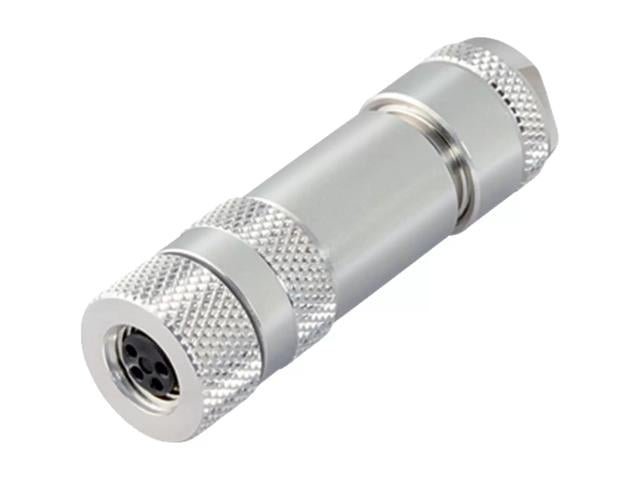

Circular connector M8 Cable female straight, 3 Pole screw lock screw term 5,0mm Cable entry shield 4A 30V IP67

Circular connector M8 Cable female straight

Specifications

Part no.	99 3360 100 03
Connector design	Female cable connector
Type standard	DIN EN 61076-2-104
Version	Connector socket straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Cross-sectional area	0.14-0.50 mm² / AWG 26-20
Cable outlet	4.0-5.5 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	27.83

Rated voltage	30 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Pollution degree	3
Overvoltage category	III
Insulating material group	II
EMC compliance	shieldable
Shield connection	Iris type spring

Downloads

Datasheet - 99-3360-100-03

Additional Information

Device	Connector
Type	Female
