99-3362-00-04

SKU: 99-3362-00-04

BRAND: Binder

In Stock
R 372.05_{(inc VAT)}
R 323.52_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

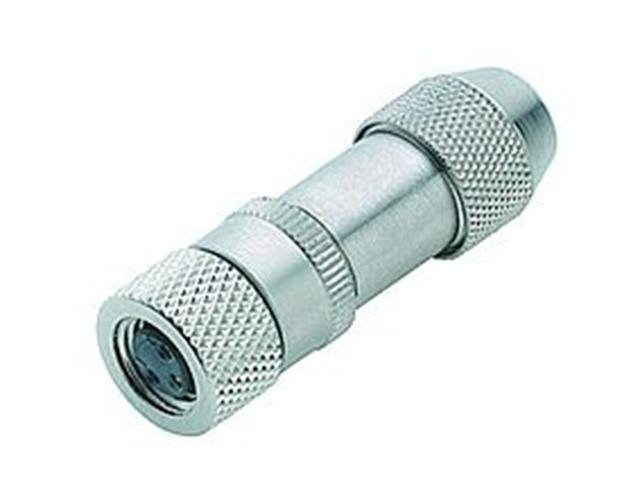

Circular Connector M8 Cable Female Straight, 4 Pole Screw Lock Sold Term 5,5mm Cable Entry Shield IP67

Circular Connector M8 Cable Female Straight

Feature(s)

General Values

Connector Design : Female Cable Connector
Connector Locking System : Bolted
Termination : Solder
Wire Gauge (mm) : 0,25 mm²
Wire Gauge (AWG) : 24

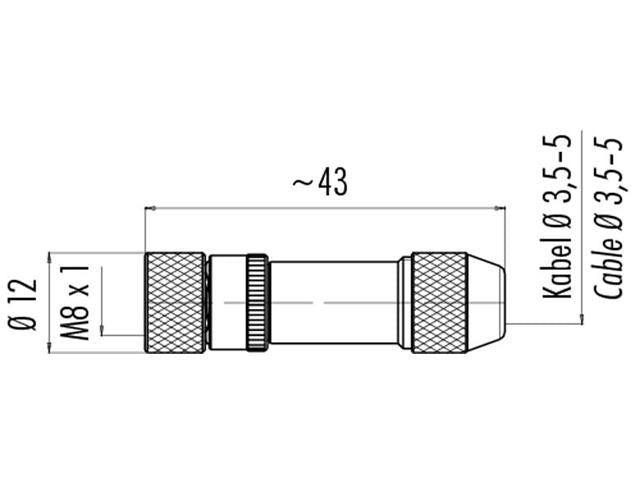

Cable Outlet : 3,5 – 5 mm
Upper Limit Temperature : 85 °C
Lower Limit Temperature : -40 °C

Cable Data

Approval 1 : UL listed

Electrical Values

Rated Voltage : 60 V
Rated Impulse Voltage : 1500 V
Pollution Degree : 3
Overvoltage Category : III
Insulating Material Group : III
Rated Current (40 °C) : 4 A
Volume Resistivity : ≤ 3 mΩ
EMC Compliance : Shieldable
Degree of Protection : IP67
Mechanical Operation : > 100 Mating Cycles

Material

Contact Material : CuSn (Bronze)
Contact Plating : Au (gold)
Contact Body Material : PA
Housing Material : CuZn (Messing) Vernickelt

Downloads

Datasheet - 99-3362-00-04

Additional Information

Device	Connector
Type	Circular \| M8 Cable \| Female \| Straight
