SKU: 99-3369-100-04

BRAND: Binder


In Stock
R 503.13 (inc VAT)
R 437.50 (ex VAT)

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

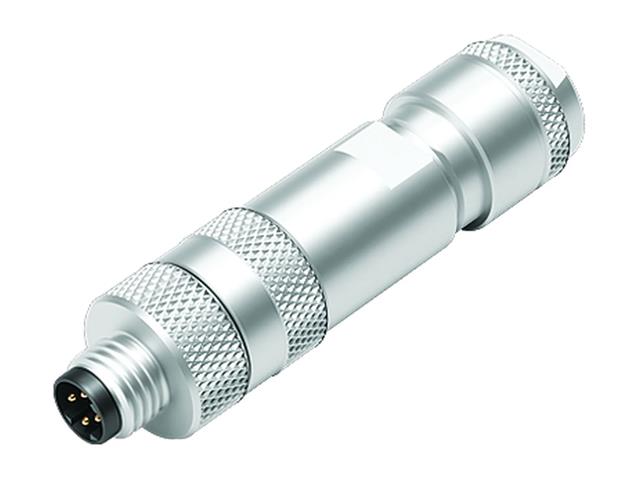

Circular Connector M8 Cable Male Straight, 4 Pole Screw Lock Screw Clamp Terminal 5,5mm Cable Entry Shield 4A 63V IP67. (Profinet Data Connector)

M8 Cable Male Straight Circular Connector

Specifications

  • Connector design : Male cable connector
  • Type standard : DIN EN 61076-2-114
  • Version : Connector pin straight
  • Connector locking system : M8x1
  • Termination : screw clamp
  • Degree of protection : IP67
  • Cross-sectional area : 0.14-0.50 mm²
  • Cable outlet : 4.0-5.5 mm
  • Temperature range from/to : -25 °C / 85 °C
  • Mechanical operation : > 100 Mating cycles
  • Weight (g) : 27.94

Electrical parameters

  • Rated voltage : 63 V DC
  • Rated impulse voltage : 1500 V
  • Rated current : 4.0 A
  • Insulation resistance : > 108 Ω
  • Pollution degree : 3
  • Overvoltage category : II
  • Insulating material group  : II
  • EMC compliance : shieldable
  • Shield connection : Iris type spring

Material

  • Housing material : CuZn (Brass nickel plated)
  • Contact body material : PA black
  • Contact material : CuZn (brass)
  • Contact plating : Au (gold)
  • Locking material : CuZn (brass)
  • REACH SVHC : CAS 7439-92-1 (Lead)

Downloads

Additional Information

Device Connector
Type M8 Cable | Male | Straight | Circular
