99-3730-810-04

Name: 99-3730-810-04 - Communica [Part No: 99-3730-810-04]
Brand: Binder
SKU: 99-3730-810-04
Price: 348 ZAR
Availability: InStock

SKU: 99-3730-810-04

BRAND: Binder

R 400.20_{(inc VAT)}
R 348.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

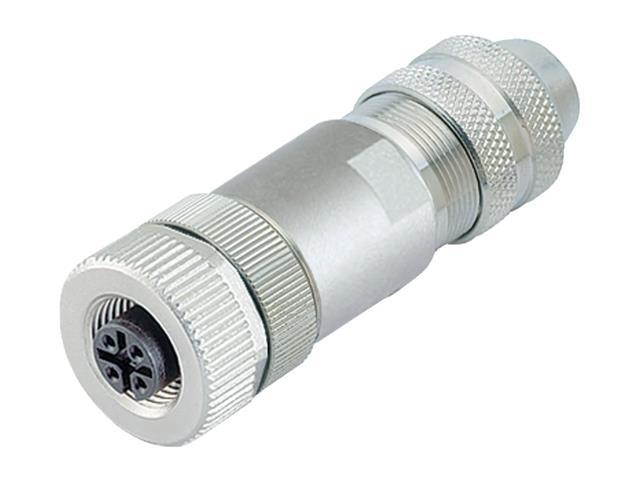

Circular Connector M12 D COD Cable Female Striaght 4 Pole Screw Terminal 8mm Cable Entry Shielding Ring Shield IP67

M12 D COD Cable Circular Connector

Specifications

Connector design : Female cable connector
Type standard : DIN EN 61076-2-101
Version : Connector socket straight
Connector locking system : screw
Termination : screw clamp
Degree of protection : IP67
Cross-sectional area : max. 0.75 mm² / AWG 18
Cable outlet : 6.0-8.0 mm
Temperature range from/to : -40 °C / 85 °C
Mechanical operation : > 100 Mating cycles
Weight (g) : 45.07
Customs tariff number : 85369010
Country of Origin : HU

Electrical parameters

Rated voltage : 250 V
Rated impulse voltage : 2500 V
Rated current : 4.0 A
Insulation resistance : ≥ 10¹⁰ Ω
Pollution degree : 3
Transmission rate : CAT 5
Overvoltage category : II
Insulating material group : III
EMC compliance : shieldable
Shield connection : Shielding ring

Downloads

Datasheet - 99-3730-810-04

Additional Information

Device	Connector
Type	M12 \| D COD \| Cable \| Circular

Enhance your connectivity with the M12 D COD Circular Connector, designed for reliable performance in harsh environments. With IP67 protection, screw-clamp termination, and a temperature range of -40°C to 85°C, this durable female connector ensures optimal signal transmission and longevity. Ideal for industrial applications, its secure locking system and robust design promise peace of mind for your projects.
