99-5125-19-07

Name: 99-5125-19-07 - Communica [Part No: 99-5125-19-07]
Brand: Binder
SKU: 99-5125-19-07
Price: 595 ZAR
Availability: InStock

SKU: 99-5125-19-07

BRAND: Binder

R 684.25_{(inc VAT)}
R 595.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

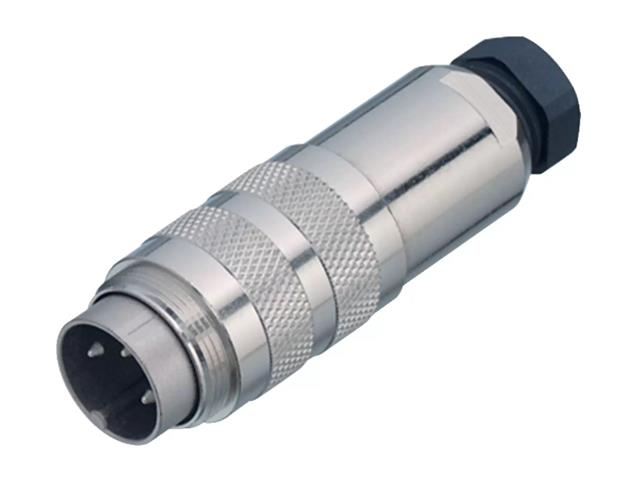

Circular Connector M16 Shield Cable Male Straight 7 POL DIN Gold plated contacts Screw lock 6mm Cable entry IP67

Circular Connector Male Straight

Specifications

Part no.	99 5125 19 07
Connector design	Male cable connector
Type standard	DIN EN 61076-2-106
Version	Connector pin straight
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Cross-sectional area	max. 0.75 mm² / AWG 18
Cable outlet	4.0-6.0 mm
Temperature range from/to	-30 °C / 95 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	49.74

Rated voltage	125 V
Rated impulse voltage	800 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding ring

Additional Information

Device	Connector
Type	Male \| Gold Plated

Enhance your connectivity with the 99-5125-19-07 Circular Connector. This durable male connector features gold-plated contacts for superior conductivity and an IP67 rating for ultimate protection against dust and moisture. Ideal for demanding environments, it ensures reliable performance with a screw-lock mechanism and a wide temperature range. Upgrade your projects with this high-quality, shielded connector for seamless, long-lasting connections.
