99-5126-19-07

Name: 99-5126-19-07 - Communica [Part No: 99-5126-19-07]
Brand: Binder
SKU: 99-5126-19-07
Price: 496.54 ZAR
Availability: InStock

SKU: 99-5126-19-07

BRAND: Binder

R 571.02_{(inc VAT)}
R 496.54_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

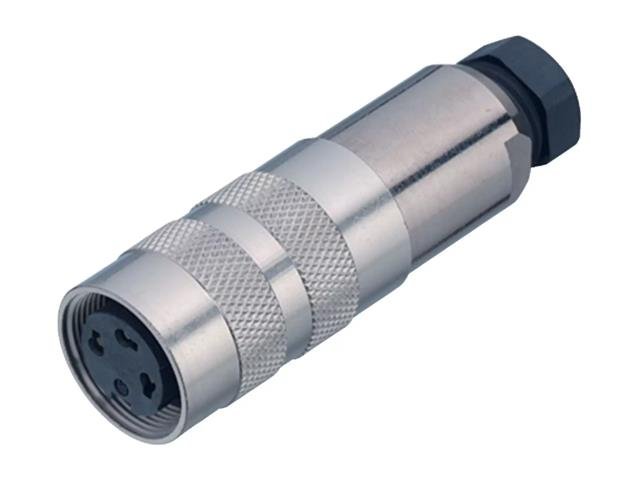

Circular Connector M16 shield cable female straight 7 pole DIN Gold plated contacts screw lock 6MM cable entry IP67

Circular Connector female straight

Specifications

Part no.	99 5126 19 07
Connector design	Female cable connector
Type standard	DIN EN 61076-2-106
Version	Connector socket straight
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Cross-sectional area	max. 0.75 mm² / AWG 18
Cable outlet	4.0-6.0 mm
Temperature range from/to	-30 °C / 95 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	52.97

Rated voltage	125 V
Rated impulse voltage	800 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding ring

Additional Information

Device	Connector
Type	Female

Upgrade your connectivity with the 99-5126-19-07 Circular Connector. This robust female connector features gold-plated contacts and a secure screw lock, ensuring reliable performance in demanding environments. With IP67 protection and a wide temperature range, it's perfect for any application requiring durability and efficiency.
