99-5896-15-24

SKU: 99-5896-15-24

BRAND: Binder

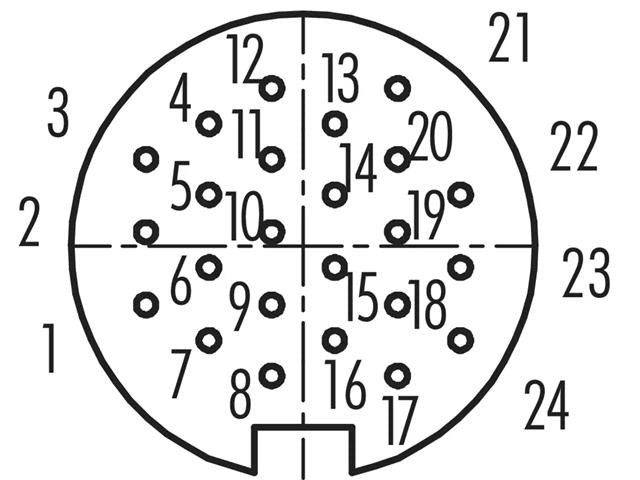

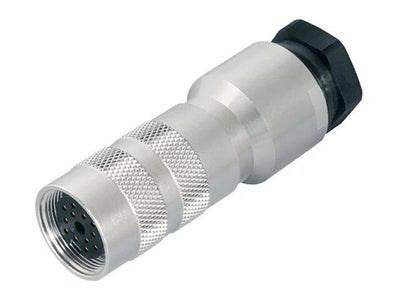

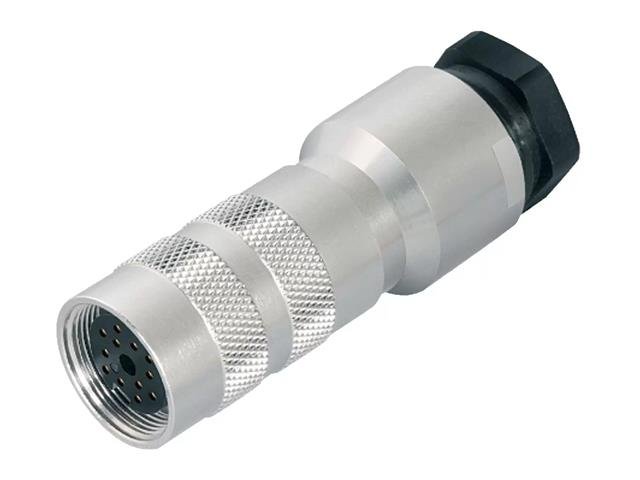

Circular Connector M16 Cable Female Stright 24 Pole Shielding Ring Gold Plated Contacts Screw Lock Solder 8mm Cable Entry IP67

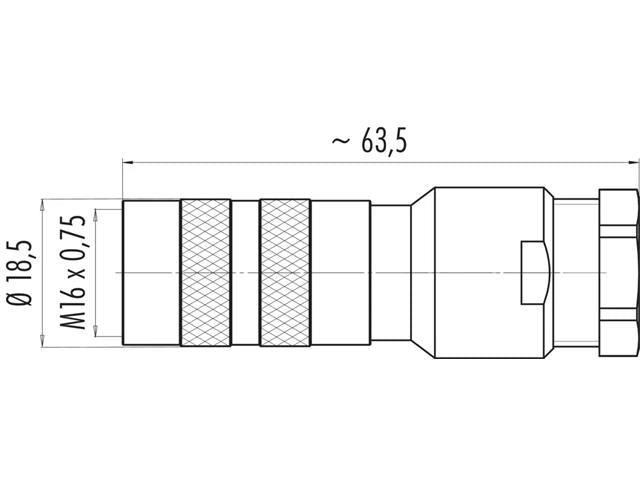

M16 Circular Cable Connector

Specifications

  • Connector design : Female cable connector
  • Version : Connector socket straight
  • Connector locking system : screw
  • Termination : solder
  • Degree of protection : IP67
  • Cross-sectional area : max. 0.14 mm² / AWG 26
  • Cable outlet : 8.0-10.0 mm
  • Temperature range from/to : -30 °C / 95 °C
  • Mechanical operation : > 500 Mating cycles
  • Weight (g) : 54.69

Electrical parameters

  • Rated voltage : 60 V
  • Rated impulse voltage : 500 V
  • Rated current (40 °C) : 1.0 A
  • Insulation resistance : ≥ 10¹⁰ Ω
  • Pollution degree : 1
  • Overvoltage category : I
  • Insulating material group : III
  • EMC compliance : shieldable
  • Shield connection : Shielding ring

Material

  • Housing material : CuZn (Brass nickel plated)
  • Contact body material : PBT (UL94 V-0)
  • Contact material : CuSn (bronze)
  • Contact plating : Au (gold)
  • REACH SVHC : CAS 7439-92-1 (Lead)

Downloads

Additional Information

Device Connector
Type M16 | Circular | Cable
