A01MMB - Switches -

A01MMB

SKU: A01MMB

BRAND: Apem


In Stock
R 138.49 (inc VAT)
R 120.43 (ex VAT)

Collections:

Type: Switches

Category: Pushbutton Switches

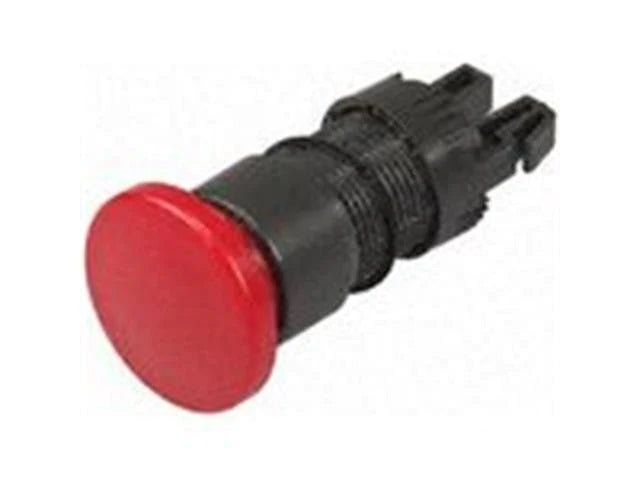

Mushroom Head Operator Red Momentary 24mm Panel Cutout = 16mm

Mushroom Head Operator Switch

Specifications

  • Function : Momentary
  • Current/voltage rating : 10mA 5VAC min. :6A 250VAC max. - 6A 12VDC max.
  • Contact gap : > 1 mm (.039)
  • Initial contact resistance : 10mΩ max. at 1A 4VDC
  • Insulation resistance : 50 MΩ min.
  • Dielectric strength : 750V between open contacts :5KV live to accessible
  • Electrical life (resistive load) : 50.000 cycles
  • Insulation : Class 2
  • Lamp life : LED : 60.000 h min. to 75% relative luminosity - Filament : approx. 5.000 h Neon : approx. 10.000 h
  • Panel thickness : 8 mm (.315) max.
  • Operating temperature :-20°C to +55°C
  • Solder heat resistance (IEC 68-2-20Tb, method 2) : 350°C, 5 sec.
  • Degree of environmental
  • IP 65 front of panel protection (IEC 529) : IP 40 back of panel
  • Lamps : Midget Grooved T13/4, filament, LED or neon
  • Switch terminals : Solder/quick-connect 2,8 mm (.110)
  • Lamp terminals : Solder/quick-connect 2,8 mm (.110)

Downloads

Additional Information

Device Switch
Type Mushroom | Head Operator
