ACM ESP8266-ESP12F SMD BREAKOUT

SKU: ACM ESP8266-ESP12F SMD BREAKOUT

BRAND: Communica

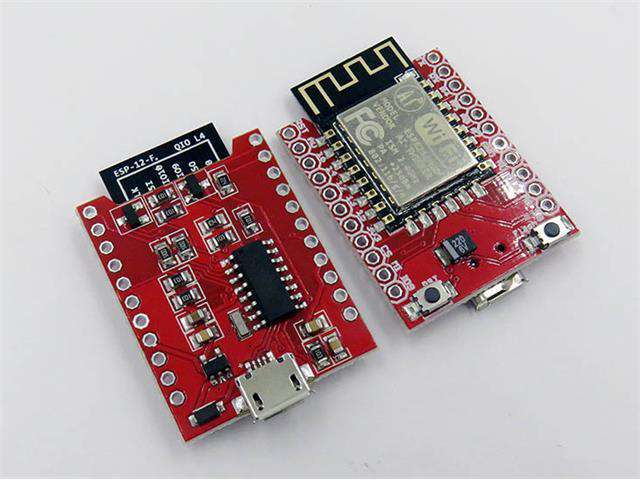

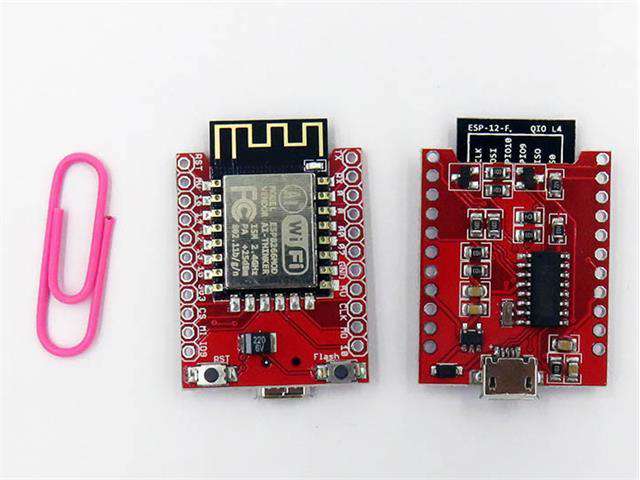

New Rev3.0 ESP8266 SMD Adapter Breakout Board

Overview

Features

    • Breakout board based on ESP-12F
    • Support auto reset programming, support arduino IDE (to use in ardino, choose wemos R2 or mini board), support nodeMCU programming.
    • On board power LDO, support up to 600mA
    • On board CH340G USB-TTL IC connect to USB and ESP8266 Uart serial interface.
    • On board ADC voltage divide pin, support analog input 0-3.2V
    • 11 digital input / output pin, pin with interrupt / PWM / I2C / support 1 line (except D0)
    • On board reset and flash button.
    • Quick start with only a USB cable.
    • Current version IO4 and IO5 is swapped, but marked on board, will fix this on next batch of production. Except this all compatible with wemos d1.

Package Include

  • 2.54mm Male Pin Header
  • ESP8266 SMD adapter R3 main board (ESP-12F module included and soldered).

Specification
