ADF RASPBERY PI 2.8IN TOUCH TFT

SKU: ADF RASPBERY PI 2.8IN TOUCH TFT

BRAND: Adafruit


1601 :: 320x240 2.8in Raspberry Pi Touch TFT LCD Screen using SPI OR GPIO

Overview

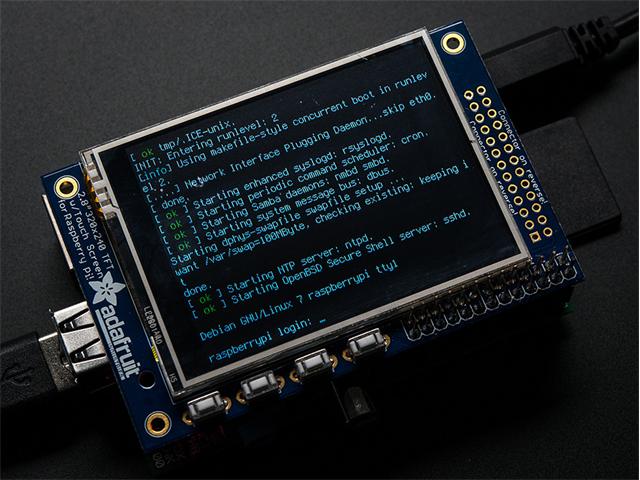

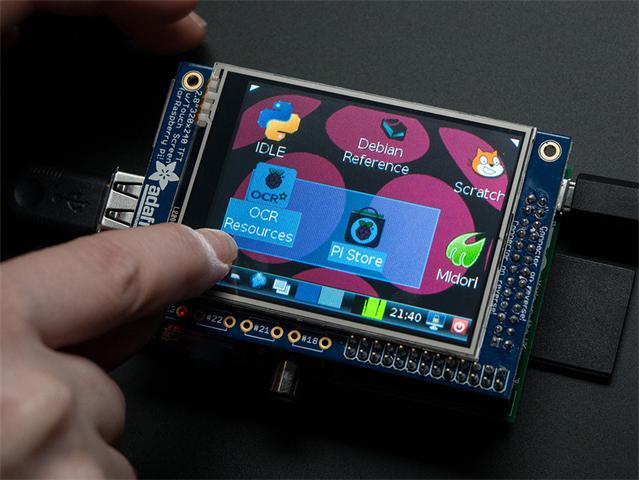

Is this not the cutest little display for the Raspberry Pi. It features a 2.8" display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top.

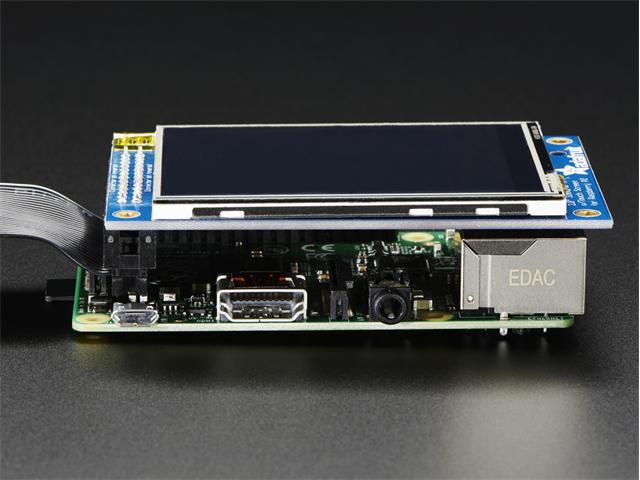

Its designed to fit nicely onto the Pi Model A or B but also works perfectly fine with the Model B+ as long as you don't mind the PCB overhangs the USB ports by 5mm, see the photos above.

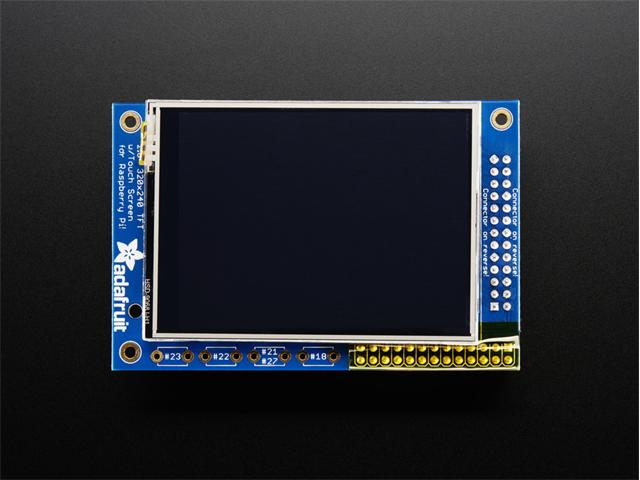

Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface.For example, you can use one as a power on/off button. See below for the link to get the optional tact switches, they're not included.

As of 8/15/2014 it comes fully assembled and ready to plug into your Pi. The photos above also show the optional installed slim tactile buttons. The tactile buttons are not included. Some basic soldering is required to install the buttons.

We have created a custom kernel package based of off Notro's awesome framebuffer work, so you can install it over your existing Raspbian (or derivative) images in just a few commands. Our tutorial shows you how to install the software, as well as calibrate the touchscreen, show videos, display images such as from your PiCam and more.

Display current draw is mostly based on the backlight, with full-on backlight the current draw is ~ 100mA.
