AJAX MANUAL CALL POINT (RED)

Name: AJAX MANUAL CALL POINT (RED) - Communica [Part No: AJAX MANUAL CALL POINT (RED)]
Brand: Ajax
SKU: AJAX MANUAL CALL POINT (RED)
Price: 1277.39 ZAR
Availability: InStock

SKU: AJAX MANUAL CALL POINT (RED)

BRAND: Ajax

R 1,469.00_{(inc VAT)}
R 1,277.39_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: AJAX

Type: Alarms & Accessories

Category: Alarm Accessories

Wireless Wall-mounted Button For Manual Fire Alarm Activation, Freq:868.0~868.6MHz, 2xCR123A, Operating Temp:0°С~+50°С, Compatibility:HUB 2 (2G/4G) HUB+, HUB 2+, HUB Hybrid 2G/4G & REX/REX2 Extenders, 102×104×39mm, 214g

Wireless Wall-Mounted Button

Specifications

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

Two-way communication.
Advanced sabotage protection.
Block encryption featuring a dynamic key.
Instant notifications.
Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio signal range

up to 1,700 m

Between the button and a hub (or range extender) in an open space.

Encrypted communication

All stored and transmitted data is protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Key features

Resettable frangible element

activates the button

When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.

Operating modes

fire alarm
scenario trigger
auxiliary alarm
panic button
gas leak alarm
malfunction alert
water leak alarm

With appropriate settings, it activates an alarm or controls.

LED status indication

fire alarm
malfunctions

The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.

Interconnected fire detectors alarms

by pressing the button

By pressing the frangible element, fire detectors in the system trigger the built-in sirens.

Critical alerts

The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.

Protection against accidental presses

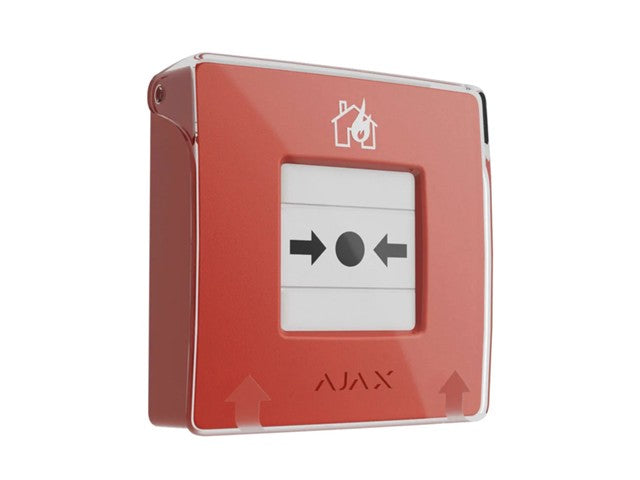

Lift the transparent lid to access the frangible element. The lid protects against false button presses.

Alarm transmission to CMS

can be disabled

Special tool (key)

Button reset

after pressing

To reset the button, insert the special tool into the corresponding hole.

Hole in the enclosure

to hang on a ring from a keychain

The person responsible for fire safety can carry the special tool on their keychain.

Convenient dismantling

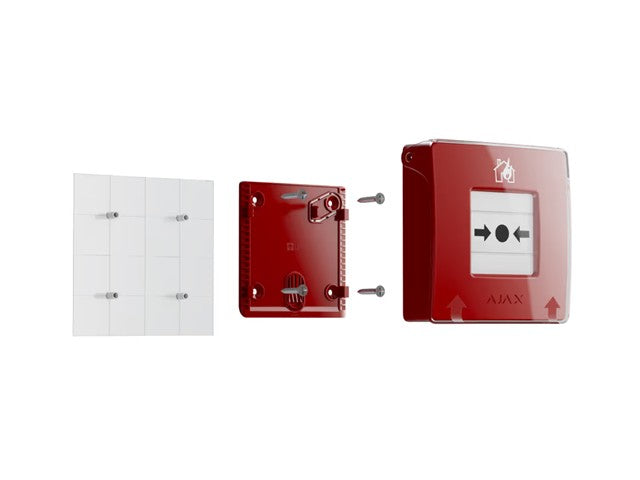

The special tool opens the lock to dismantle the device from SmartBracket mounting panel.

Downloads

Datasheet - AJAX MANUAL CALL POINT (RED)

Additional Information

Device

Button

Ensure safety with the AJAX Manual Call Point (Red), a reliable wireless button for instant fire alarm activation. Featuring advanced encryption and two-way communication, it offers peace of mind with quick alerts and robust protection against false alarms. Compatible with various Ajax hubs, this essential safety device is easy to install and operate, making it a must-have for any emergency preparedness plan.
