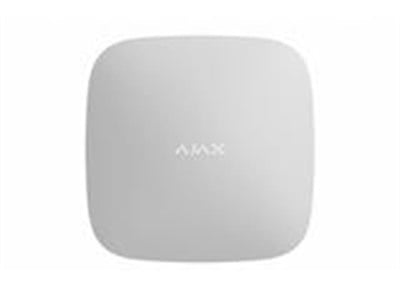

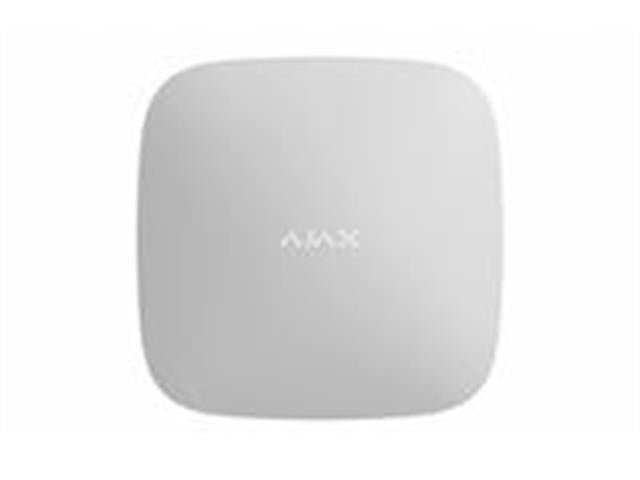

Wireless Indoor Radio Signal Range Extender (can only be connected to a HUB) Supports Motioncam, Alarm Signal Delivery Time:0.3s, FREQ:868.0~ 868.6MHz, 163×163×36mm, 330g
Radio Signal Range Extender
Overview
ReX 2 makes security systems with MotionCam detectors even more flexible and scalable. Supporting both proprietary radio protocols Jeweller and Wings ReX2 is an ultimate range extender for Ajax security systems, helping to increase its coverage up to 35 km . Regardless of the property size, alarms are transmitted in 0.3 seconds, and the first photo is delivered in under 18 seconds
Features
- Doubles the communication range of MotionCam detectors.
- Frequency hopping against jamming.
- Over-the-air updates.
- Communicates with a control panel and
- Ajax devices at the range of up to 1,700 m via Jeweller and Wings radio protocols.
- Up to 38 hours on backup battery.
- Tampering alarm.
- Pairing with the Ajax security system via QR code.
- Remote setup and control.
Specifications
- Classification : Radio channel range extender
- Device type : Wireless
- Installation method : Indoors
- Compatibility : Hub 2 and Hub 2 Plus with OS Malevich version 2.12 and higher
- Alarm signal delivery time : 0.3 seconds
- Maximum connected devices (in a system with one range extender)
- Hub 2 — up to 99
- Hub 2 Plus — up to 199
- Number of range extenders connected to the hub : 5
- Operating system : OS Malevich
- Power supply
- SXDD110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
- Built-in backup battery Li-Ion 2 Ah
- Up to 38 hours of backup battery life
- Jeweller radio protocol
- Communication range with the hub — up to 1,700 m in open space
- Communication range with detectors — up to 1,700 m in open space, depending on the detector model
- Two-sided communication between devices
- Operating frequencies — 868.0–868.6 MHz
- Auto-regulated radio signal power: ≤ 25 mW
- Blocking encryption based on the AES algorithm
- Detector ping interval — 12–300 seconds
- Frequency hopping
- Operating temperature range : From −10°C to +40°C
- Operating humidity : Up to 75%
- Anti-sabotage
- Fraud protection
- Jamming notification
- Tamper-resistant
- Dimensions : 163 × 163 × 36 mm
- Weight : 330 g
- Complete set
- ReX 2

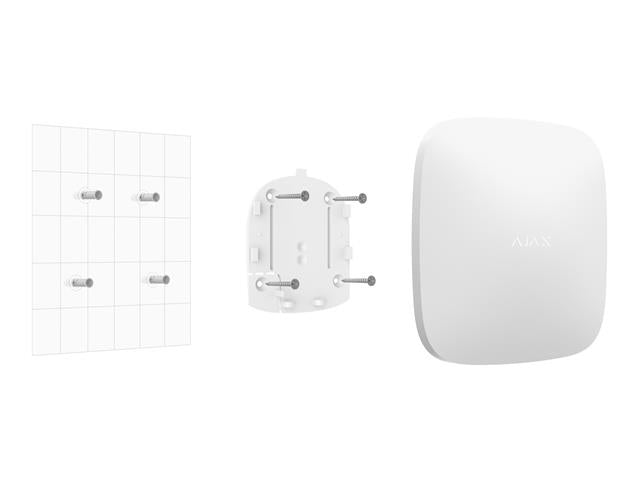

- SmartBracket mounting panel
- Power cable
- Installation kit
- Quick start guide
Additional Information
| Device |
Range Extender |
| Type |
Radio Signal |
