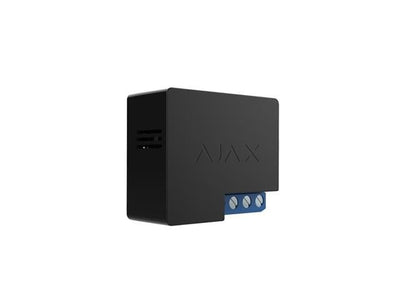

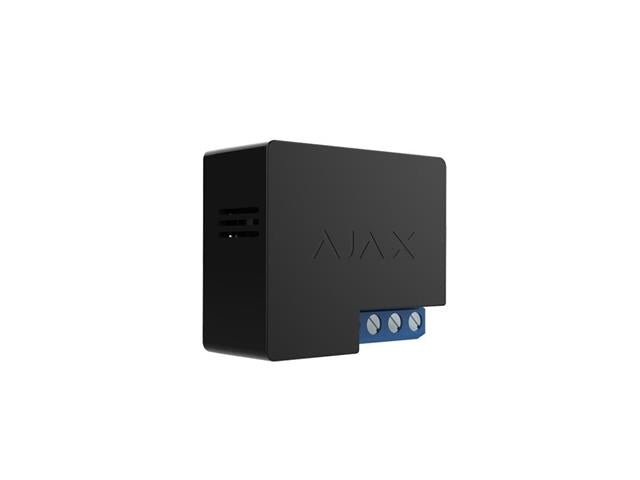

AJAX WALL SWITCH

SKU: AJAX WALL SWITCH

BRAND: Ajax


Wireless Power Relay To Control Electrical Supply Remotely , 110VAC~1.5KW , 230VAC~3KW , Max Load:13A , NO/NC , Freq:868.0~868.6 Mhz , Two-way Communication @ 1000M In An Open Space , IP20 , 30G ,39×33×18mm

Wireless Power Relay To Control Electrical Supply Remotely

Specifications

  • Classification: Radio channel relay unit
  • Device type: Wireless

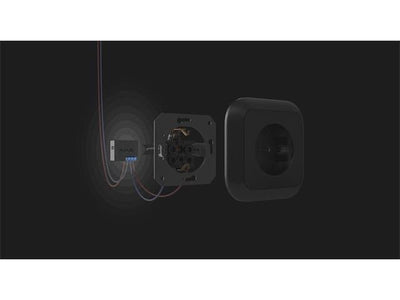

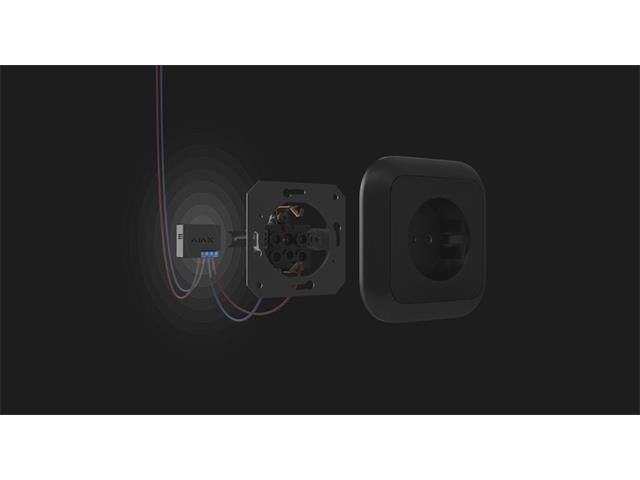

  • Installation method: Into wall plate
  • Compatibility: Operates only with hub Ajax and ReX
  • Actuating element: Relay
  • Relay service life:200,000 switch-ons
  • Voltage protection: For 230 V mains: max — 264 V, min — 161 V
                               For 110 V mains: max — 126 V, min — 77 V
  • Maximum load current: 13 A
  • Maximum current protection: Yes (13 A)
  • Maximum temperature protection: >65°C in the wall plate
  • Permissible power: Resistive load at 230 V — up to 3 kW
                             Resistive load at 110 V — up to 1.5 kW
  • Electric power meter function: Available
  • Energy consumption parameter check: Current, voltage, power consumption
  • Alarm signal delivery time: 0.15 s
  • Power supply: 110−230 V±10% 50/60 Hz
  • Operation modes : Impulse (firmware version 5.54.1.0 or higher)
                             Bistable
  • Contact state (firmware version 5.54.1.0 or higher): Normally open
                                                                             Normally closed
  • Adjustable pulse duration (firmware version 5.54.1.0 or higher): 0.5 – 255 sec
  • Jeweller radio technology: Communication range with central unit — up to 1,000m in an open space
                                        Two-way communication between devices
                                        Operating frequencies — 868.0-868.6 MHz
                                        Self-adjusting RF output power — up to 25 mW
                                        Block encryption based on AES algorithm
                                        Detector scanning period — 12−300 s
  • Operating temperature range: 0°С to +64°С
  • Permissible humidity: Up to 75%
  • Protection class of body: IP20
  • Anti-sabotage: Protection against fraud
                         Jamming detection
  • Remote setting and testing: +
  • Dimensions: 39 х 33 х 18 mm
  • Weight: 30 g
  • Certification: CE
  • Warranty: Replacement and repair within 24 months of the dateof sale.
  • Complete set: WallSwitch
                        Installation set
                        User’s guide

Downloads

Additional Information

Device Relay
Type Wireless

-->
