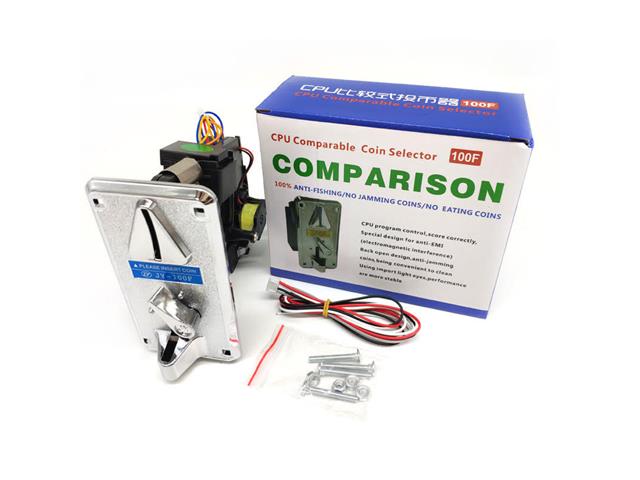

ALX SINGLE COIN ACCEPTOR 22-28MM

SKU: ALX SINGLE COIN ACCEPTOR 22-28MM

BRAND: Communica


Coin Acceptor - Speed Programmable • Accepts a Single Coin from 22-28mm in Diameter and 1.7 - 2.2mm in Thickness. 12VDC

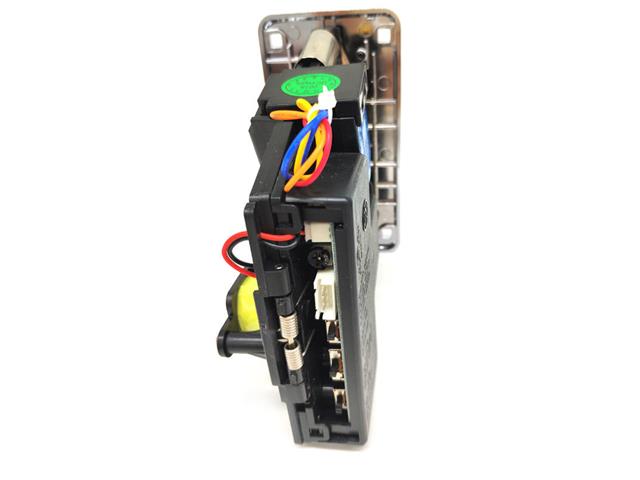

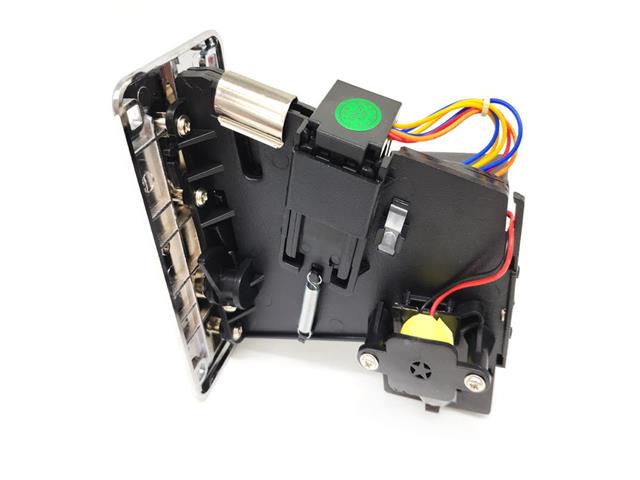

Speed Programmable Coin Acceptor

Features

  • CPU Electronic coin acceptor, Drop Inserting Type.
  • Capable for accepting all worldwide Coins and Tokens.
  • Select coin by Diameter, Thickness and Metal Content.
  • CPU anti-string programs presenting against fraud.
  • Adjustable VR tunning for sensitivity of coin acceptance.
  • Allow to connect to Counter (Meter).
    • Voltage: DC+12V
    • Coin Diameter: 22mm~28mm
    • Coin thickness: 1.7mm~2.2mm

USER GUIDE:

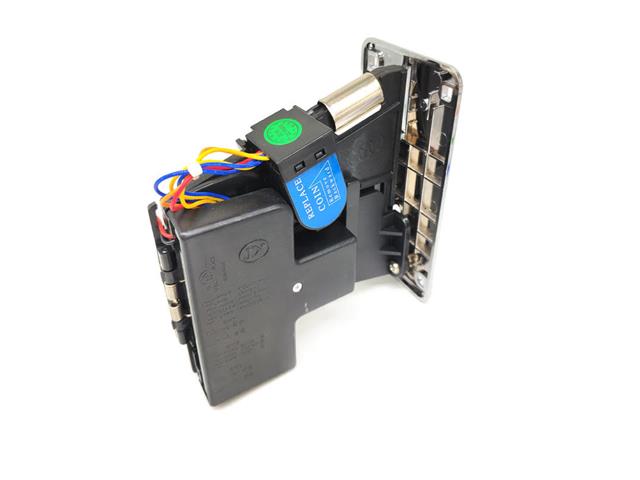

  • Replace yellow plastic token to the correct coin as wish to accept in sampling clamp.
  • Adjust entry slot opening to your coin size by loosening screw on the back of metal panel for blocking bigger invalid coin from inserting
  • Turn the screw on front lid in clockwise direction for ditching “thinner coin” through the slot of lid if necessary
  • Switch to Normal Open (N.O.) or Normal close (N.C) for signal output of coin validation upon Host requested.
  • 3 Triggering TIMER SWITCH of Pulse Duration, ·
    • Long duration of Pulse: 100ms
    • Common duration of Pulse: 50ms
    • Short duration of Pulse :30ms
  • VR tuning for tolerance of coin acceptance, turn clockwise for slack and anti-clockwise for precise acceptance.
  • Shift sensitivity switch of coin acceptance downward to “special” to extend the range of discriminated ratio for twin metal coins or the coins in big tolerance.

Applications:

  •  Wireless PC peripherals
  •  Coin kiosk
  •  Car washing machine
  •  TV
  •  Massage chair
  •  Cloth dryer
  •  Cyber coffee
  •  Laundromat
  •  Laundry
  •  Computer
  •  Amusement machine

Downloads

Additional Information

Device Coin Acceptor
Type Speed | Programmable
