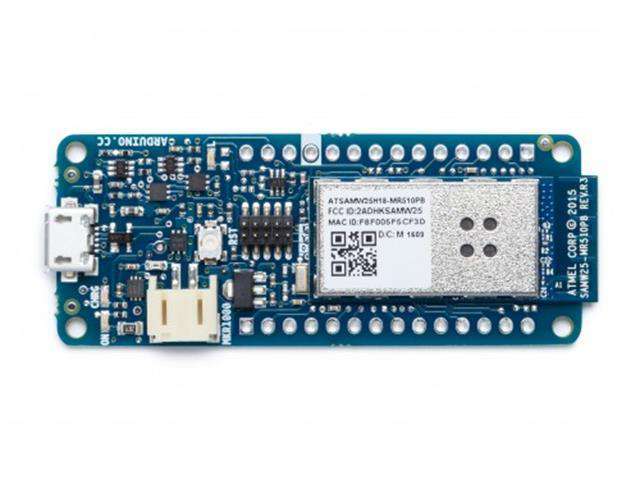

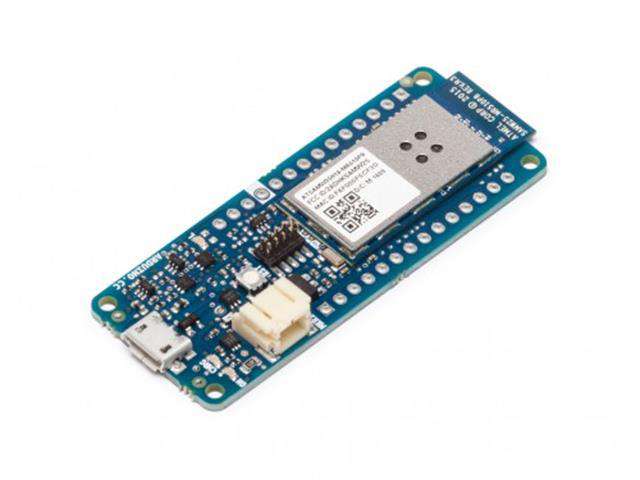

ABX00004 - Arduino MKR1000 is a powerful board that combines the functionality of the Zero and the Wi-Fi Shield. It is the ideal solution for makers wanting to design IoT projects with minimal previous experience in networking.
Arduino MKR1000 is a powerful board that combines the functionality of the Zero and the Wi-Fi Shield. It is the ideal solution for makers wanting to design IoT projects with minimal previous experience in networking.
Warning: Unlike most Arduino & Genuino boards, the MKR1000 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.
Arduino MKR1000 has been designed to offer a practical and cost effective solution for makers seeking to add Wi-Fi connectivity to their projects with minimal previous experience in networking. It is based on the Atmel ATSAMW25 SoC (System on Chip), that is part of the SmartConnect family of Atmel Wireless devices, specifically designed for IoT projects and devices.
- Microcontroller SAMD21 Cortex-M0+ 32bit low power ARM MCU
- Board Power Supply (USB/VIN) 5V
- Supported Battery: Li-Po single cell, 3.7V, 700mAh minimum
- Circuit Operating Voltage 3.3V
- Digital I/O Pins 8
- PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
- UART 1
- SPI 1
- I2C 1
- Analog Input Pins 7 (ADC 8/10/12 bit)
- Analog Output Pins 1 (DAC 10 bit)
- External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
- DC Current per I/O Pin 7 mA
- Flash Memory 256 KB
- SRAM 32 KB
- EEPROM no
- Clock Speed 32.768 kHz (RTC), 48 MHz
- LED BUILTIN 6
- Full-Speed USB Device and embedded Host
- Length 61.5 mm
- Width 25 mm
- Weight 32 gr
