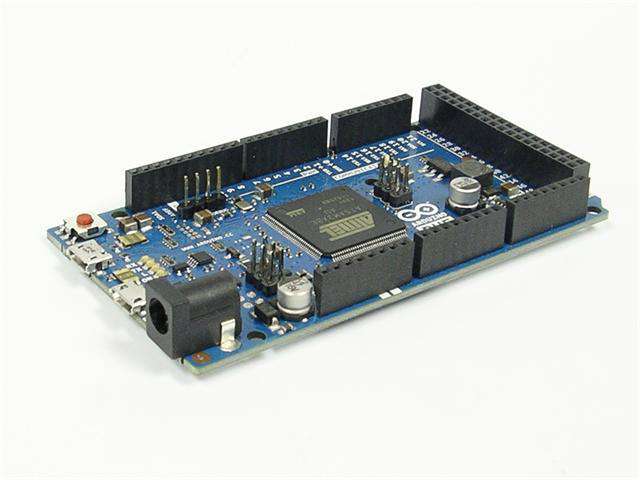

A000062-The Arduino Due is a Microcontroller Board based on the Atmel SAM3X8E ARM Cortex-M3 CPU


  • The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU
  • It is the first Arduino board based on a 32-bit ARM core microcontroller
  • It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button
  • The board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started
  • The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout
  • The Due follows the 1.0 pinout:
    • TWI: SDA and SCL pins that are near to the AREF pin
    • The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V
    • An unconnected pin, reserved for future use
  • Warning:
    • Unlike other Arduino boards, the Arduino Due board runs at 3.3V
    • The maximum voltage that the I/O pins can tolerate is 3.3V
    • Providing higher voltages, like 5V to an I/O pin could damage the board



  • Microcontroller : AT91SAM3X8E
  • Operating Voltage : 3.3V
  • Input Voltage (recommended) : 7~12V
  • Input Voltage (limits) : 6~20V
  • Digital I/O Pins : 54 (of which 12 provide PWM output)
  • Analog Input Pins : 12
  • Analog Outputs Pins : 2 (DAC)
  • Total DC Output Current on all I/O lines : 130 mA
  • DC Current for 3.3V Pin : 800 mA
  • DC Current for 5V Pin : 800 mA
  • Flash Memory : 512 KB all available for the user applications
  • SRAM : 96 KB (two banks: 64KB and 32KB)
  • Clock Speed : 84 MHz
