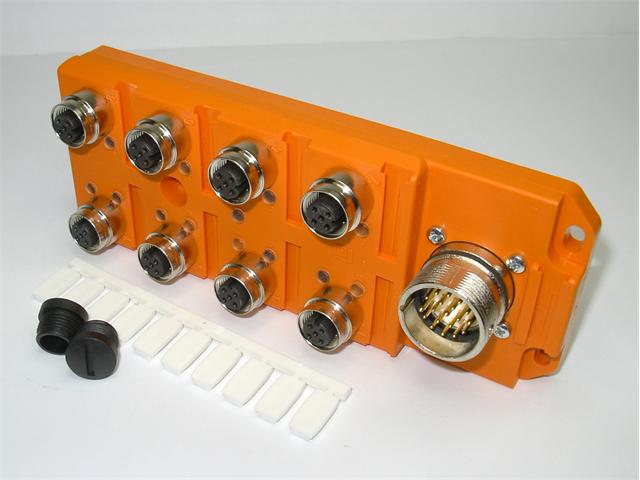

ASBSV 8/LED 5

Name: ASBSV 8/LED 5 - Communica [Part No: ASBSV 8/LED 5]
Brand: Belden Lumberg
SKU: ASBSV 8/LED 5
Price: 3036.25 ZAR
Availability: InStock

SKU: ASBSV 8/LED 5

BRAND: Belden Lumberg

In Stock
R 3,491.69_{(inc VAT)}
R 3,036.25_{(ex VAT)}

Collections: Wire & Cable

Type: Actuator/Sensor Cable

Category: M12 Distribution Box

Distribution Unit ASI - 8 Port M12A COD 8 x 5 Pole Sockets - 2 Signals Per Output. with LED Indicator. Input - M23 12 Pole Female Connector IP67 (11138)

8 Port M12A COD 8 x 5 Pole Sockets

Specifications

I/O Connection	M12, 5-poles, A-coded
Number of Ports	8
I/O Wiring Configuration	double I/O per port
Control Cable Interface	M23, 19-poles

Housing Material	Plastic, TPU
Housing Color	Orange
Protection Degree / IP Rating**	IP67
Potted	Yes
Dimensions (W x H x D)	60 mm x 30,3 mm x 152 mm
Ambient Temperature (Operation)*	-15 °C to 80 °C
Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Contact Base Material	CuZn
Contact Bearer Material	PA
O-Ring Material	FKM
Fastening Torque (I/O Connection)	M12: 0.5 Nm

Status Indicator (System Supply)	LED green
Actuator Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Actuator Supply Voltage (Range)	10 V DC to 30 V DC

Input Wiring	2-, 3-, 4-wire
Sensor Type	PNP

Output Wiring	2-, 3-wire
Galvanically Isolated	No

Current per Connector	max. 1,5 A
Current per Module	max. 1,5 A
Status Indicator (Port)	LED yellow per channel

Downloads

Datasheet - ASBSV 8/LED 5

Additional Information

Device	Distribution Unit ASI
Type	8 Port \| M12A \| COD \| 8 x 5 Pole \| Sockets
