ASS4-2 BLACK

Name: ASS4-2 BLACK - Communica [Part No: ASS4-2 BLACK]
Brand: SKS Hirschmann
SKU: ASS4-2 BLACK
Price: 130.50 ZAR
Availability: InStock

SKU: ASS4-2 BLACK

BRAND: SKS Hirschmann

In Stock
R 150.08_{(inc VAT)}
R 130.50_{(ex VAT)}

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Test Socket

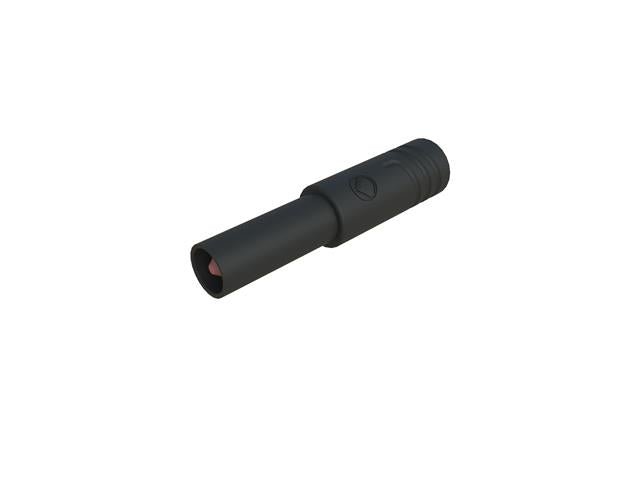

Touch-Protected Safety Adapter with Spring-Loaded 4 mm Safety Plug and RIGID 2 mm Safety Socket for Connection of 2 mm Safety Plugs, 1000V System (973610100)

Touch-Protected Safety Adapter

Specifications

connection	unsprung socket 2 mm
rated voltage	AC/DC 1000 V
measurement cat. acc. to IEC 61010	CAT III
rated current (consider derating curve)	10 A
material socket	brass, nickel plated
housing material	PA
temperature range acc. To IEC61010⁽¹⁾	-15 °C to +70 °C
inflammability class acc. to UL 94 (only valid for basic material of housing)	V-2

Downloads

ASS4-2

Additional Information

Device	Safety Adapter
Type	Touch-Protected
