BATT 12,8V200 CHP

Name: BATT 12,8V200 CHP - Communica [Part No: BATT 12,8V200 CHP]
Brand: Champion
SKU: BATT 12,8V200 CHP
Price: 8995 ZAR
Availability: OutOfStock

SKU: BATT 12,8V200 CHP

BRAND: Champion

Sold Out
R 10,344.25_{(inc VAT)}
R 8,995.00_{(ex VAT)}

Collections: Loadshedding, Power

Type: Batteries

Category: Lithium Ion Rechargeable Battery, Loadshedding

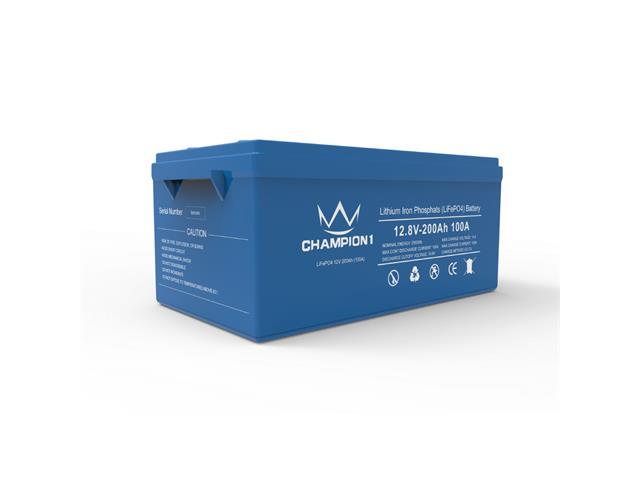

Champion Lithium Ion Battery (LiFePO4) 12.8V 200AH 2560Wh, Charge/Voltage(V): 14.6V, Discharge Cut-Off Voltoge:10.8V, Cycles Life 4000 Times, 60% DoD, Max Charge Current:100A, STD Discharge Current:50A, M8 Terminal, L520 x W270 x H220mm, 31.5kg

12.8V 200Ah Lithium Ion Battery

Specifications

Electrical

Nominal Voltage/V : 12.8
Nominal Capacity/Ah : 200
Rated Energy/Wh : 2560
BMS Function : Overcharge, overdischarge, overcurrent and temperature protection
Recommended Charge Voltage/V :
Discharge Cut-Off Voltage/V : 14.4 - 14.6
Standard Charge Current/ A : 10.8
Max. Charge Current/ A : 50
Continous Discharge Current/A : 100
Peak Discharge Current/A : 400
Voltage Configurations : 12, 24, 36 or 48V
Maximum Configuration : Increase capacity in series or parallel 3 months
Maximum Time Between Charges : Bluetooth
Monitoring : 3 Years

Mechanical

Dimensions L *W*H (mm) : 520*270*220
Weight/kg : Approx. 31.5
Terminal : MB
Casing Material : ABS

Environment

Working Temperature Range/°C : Charge: 0-55 Discharge: -20-60
Humidity Range/RH : <95%
Storage Temperature : 15-35
IP Protection Level : IP65

Downloads

Datasheet - BATT 12,8V200 CHP

Additional Information

Device	Battery
Type	12.8V \| 200Ah \| Lithium Ion
