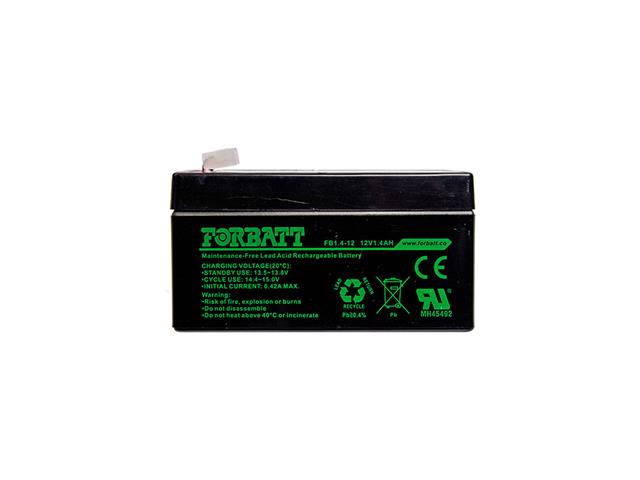

BATT 12V1,4 FBT

SKU: BATT 12V1,4 FBT

BRAND: Forbatt


Rechargeable Battery 12V1.4Ah (L=97 W=43 H=51mm) F1 Terminal 4.8mm 0.49Kg

Rechargeable Battery 12V1.4Ah

Specifications

    • Nominal Voltage : 12V
    • Rated Capacity (20hr Rate) : 1.4Ah
    • Dimensions
      • Length : 97mm
      • Width : 43mm
      • Height : 51mm
      • Total Height : 57mm
      • Weight : 0.49kg

Characteristics

    • Capacity 77°F(25°C)
      • 20hour rate (0.07 A) : 1.40Ah
      • 10hour rate (0.13 A) : 1.30Ah
      • 5hour rate (0.24 A) : 1.20Ah
      • 1hour rate (0.84 A) : 0.84Ah
    • Internal Resistance
      • Full Charged, 77°F(25°C) : 95mΩ
    • Affected By Temperature (10hr Rate)
      • 104°F(40°C) : 102%
      • 77°F(25°C) : 100%
      • 32°F(0°C) : 85%
      • 5°F(-15°C) : 65%
    • Self-Discharge 77°F(25°C)
      • Capacity after 3 month storage : 90%
      • Capacity after 6 month storage : 80%
      • Capacity after 9 month storag : 60%

Charge (Constant Voltage)

  • Initial Charge Current “LESS” than 0.42A
    • Cycle : 14.4V–15.0V/77°F(25°C)
    • Stand By : 13.5V–13.8V/77°F(25°C)
