BATT 12V18 SCF

SKU: BATT 12V18 SCF

BRAND: Security Force

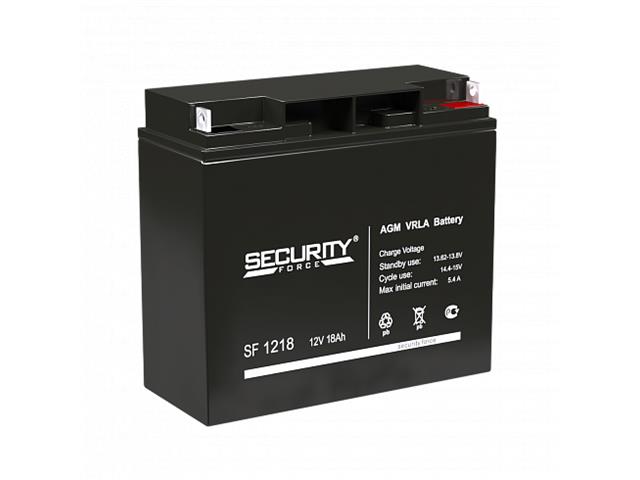

Rechargeable Battery 12V18Ah (L=181 W=77 H=167mm) F3 Terminal ID:5.4mm for M5 Bolt & Nut, 5.2kg

Rechargeable Battery 12V18Ah

Specifications

  • Nominal voltage : 12V
  • Design life : 3-5 Years
  • Nominal capacity (25°С)
    • 20 hours rate : 18 Ah
  • Self Discharge : 3% capacity per month 25°C
  • Internal Resistance (25°C) : 17mΩ

Operating Temperature Range

  • Discharge : -15~50°C
  • Charge : -10~50°C
  • Storage : -20~50°C
  • Maximum discharge current (25°C) : 5,4A
  • Cycle Mode (14,4~15 V/cell)
    • Temperature correction factor : 15m V/°C
  • Standby mode (13,62÷13,8 V/cell)
    • Temperature correction factor : 10 mV/°C

Dimensions (±2mm)

  • Height over terminals, mm : 167
  • Height, mm : 167
  • Width, mm : 77
  • Length, mm : 181

Downloads

Additional Information

Device Battery
Type Rechargeable
